Lubrication (H6DO): General Description: Component

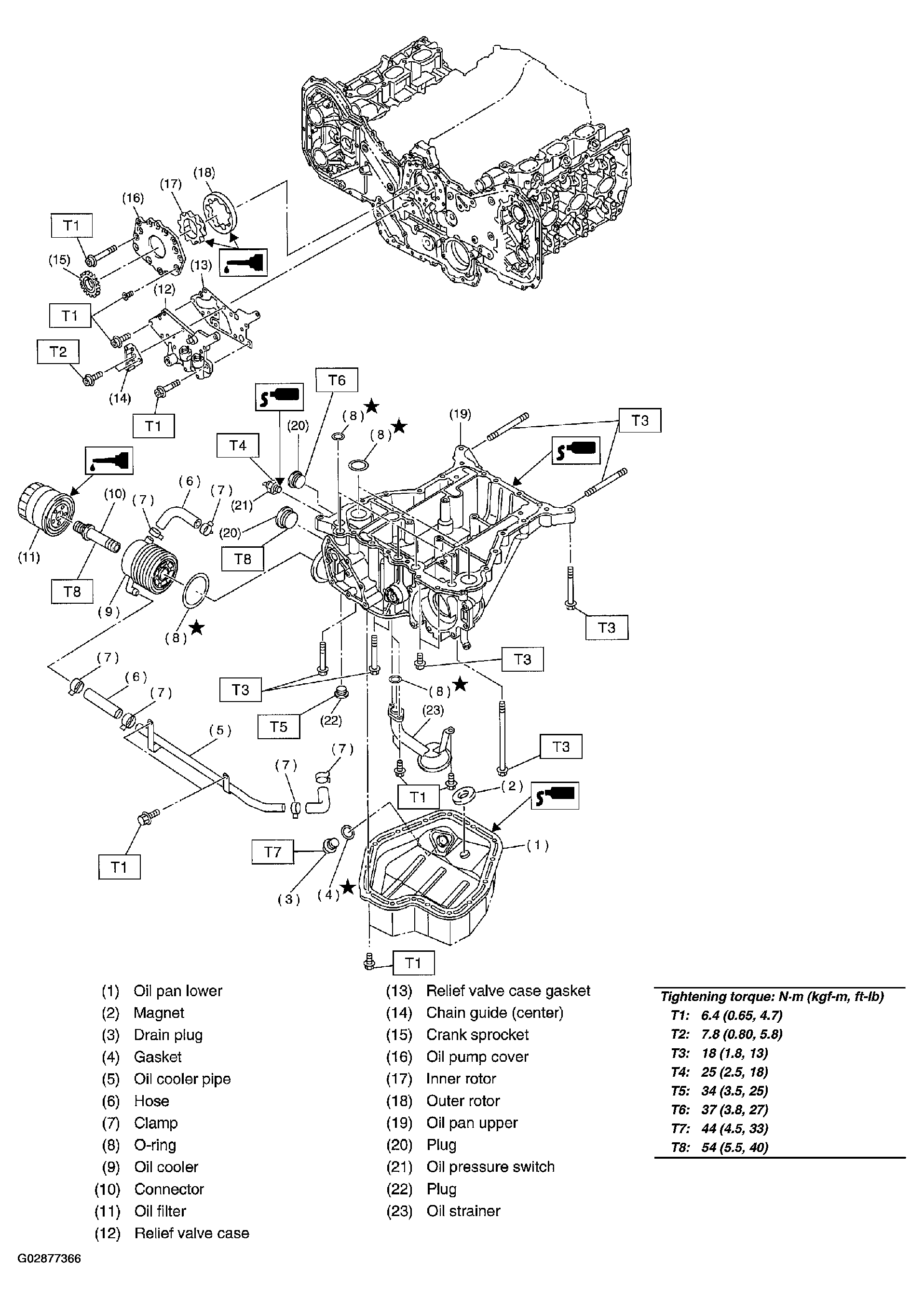

Fig 1: Exploded View Of Lubrication Component With Torque Specifications

G02877366

Courtesy of SUBARU OF AMERICA, INC.
