Transmission Case Assembly
Transmission Case Assembly

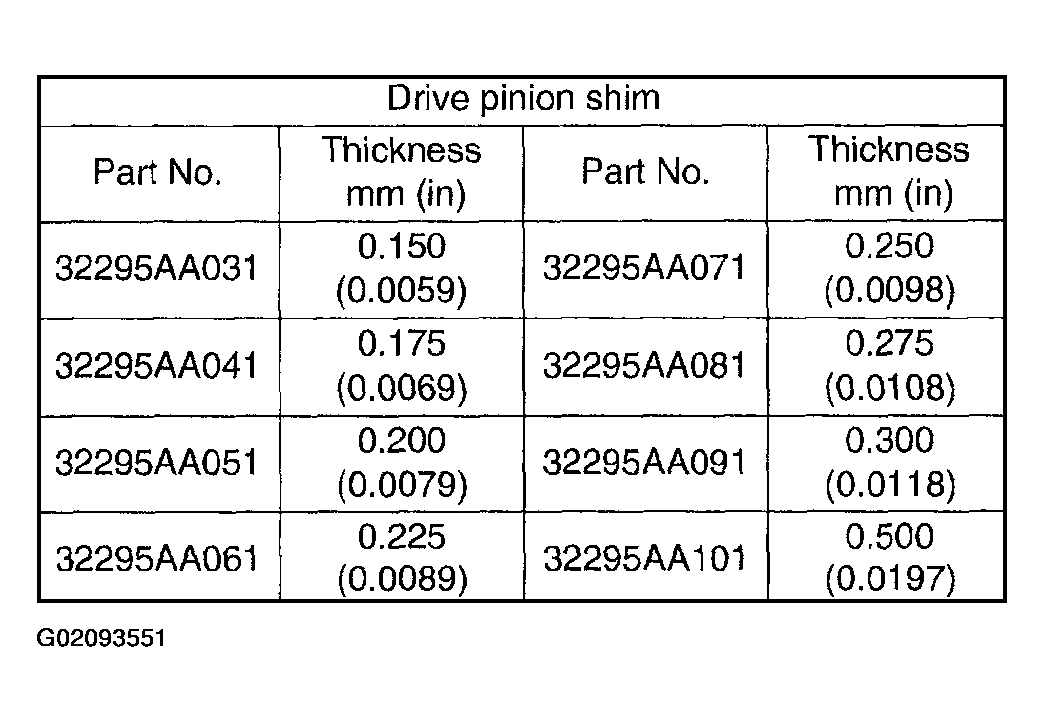

Drive pinion shim adjustment
Hypoid gear backlash
0.13 - 0.18 mm (0.0051 - 0.0071 in)
Fig 1: Drive Pinion Shim Specifications Chart
Courtesy of SUBARU OF AMERICA, INC.

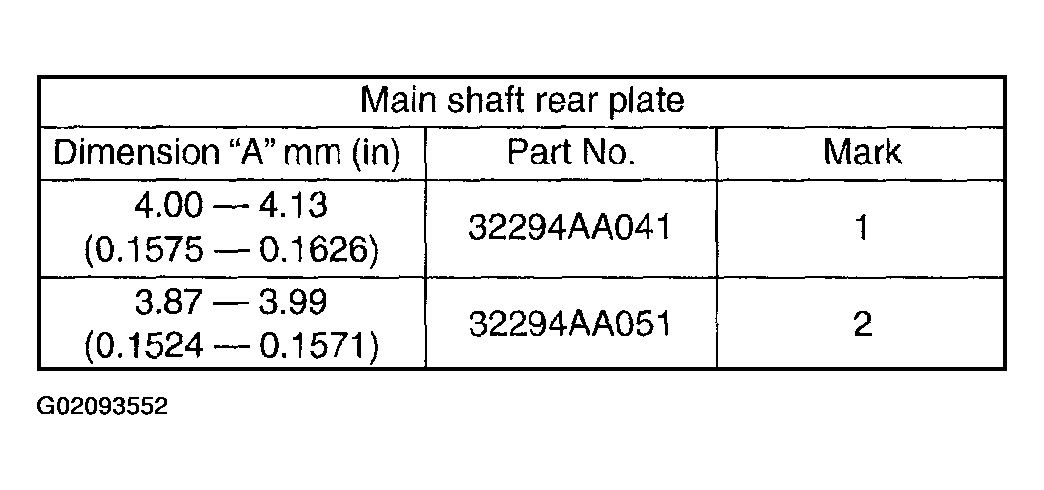

Selection of main shaft rear plate
Fig 2: Main Shaft Rear Plate Specifications Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
