Front Differential

Bevel gear to pinion backlash

0.13 - 0.18 mm (0.0051 - 0.0071 in)

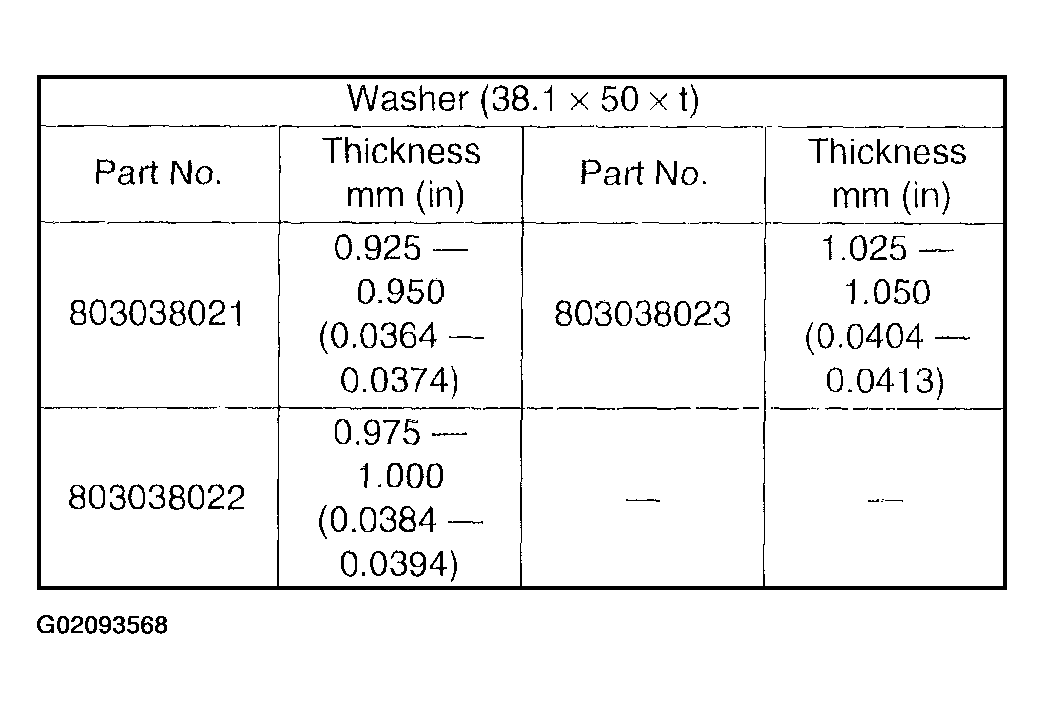

Fig 1: Washer Specifications Chart

G02093568

Courtesy of SUBARU OF AMERICA, INC.
