Cruise Control System: Actuator: Inspection

Measure the cruise control actuator resistance.

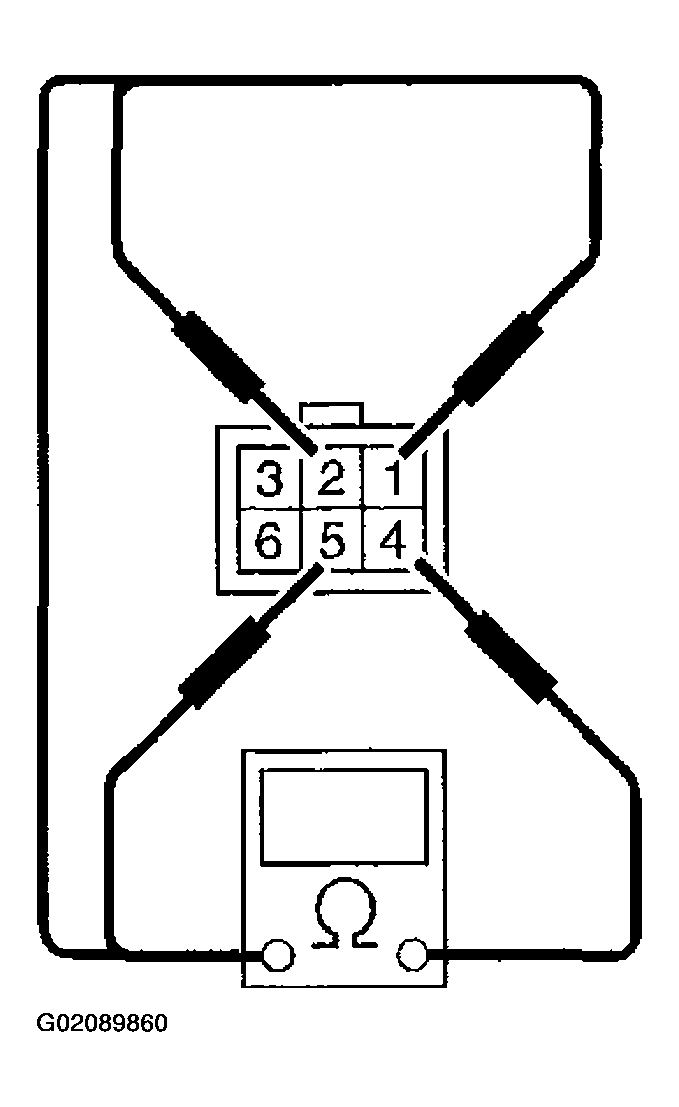

Fig 1: Measuring Cruise Control Actuator Resistance
G02089860Courtesy of SUBARU OF AMERICA, INC.

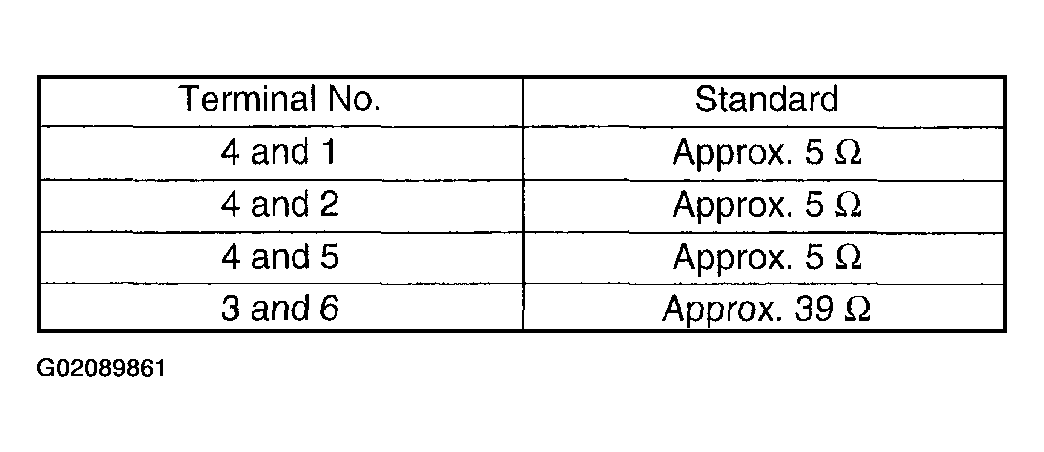

Fig 2: Cruise Control Actuator Resistance Chart
G02089861Courtesy of SUBARU OF AMERICA, INC.

If NG, replace the cruise control actuator.
