Non-Turbo Model

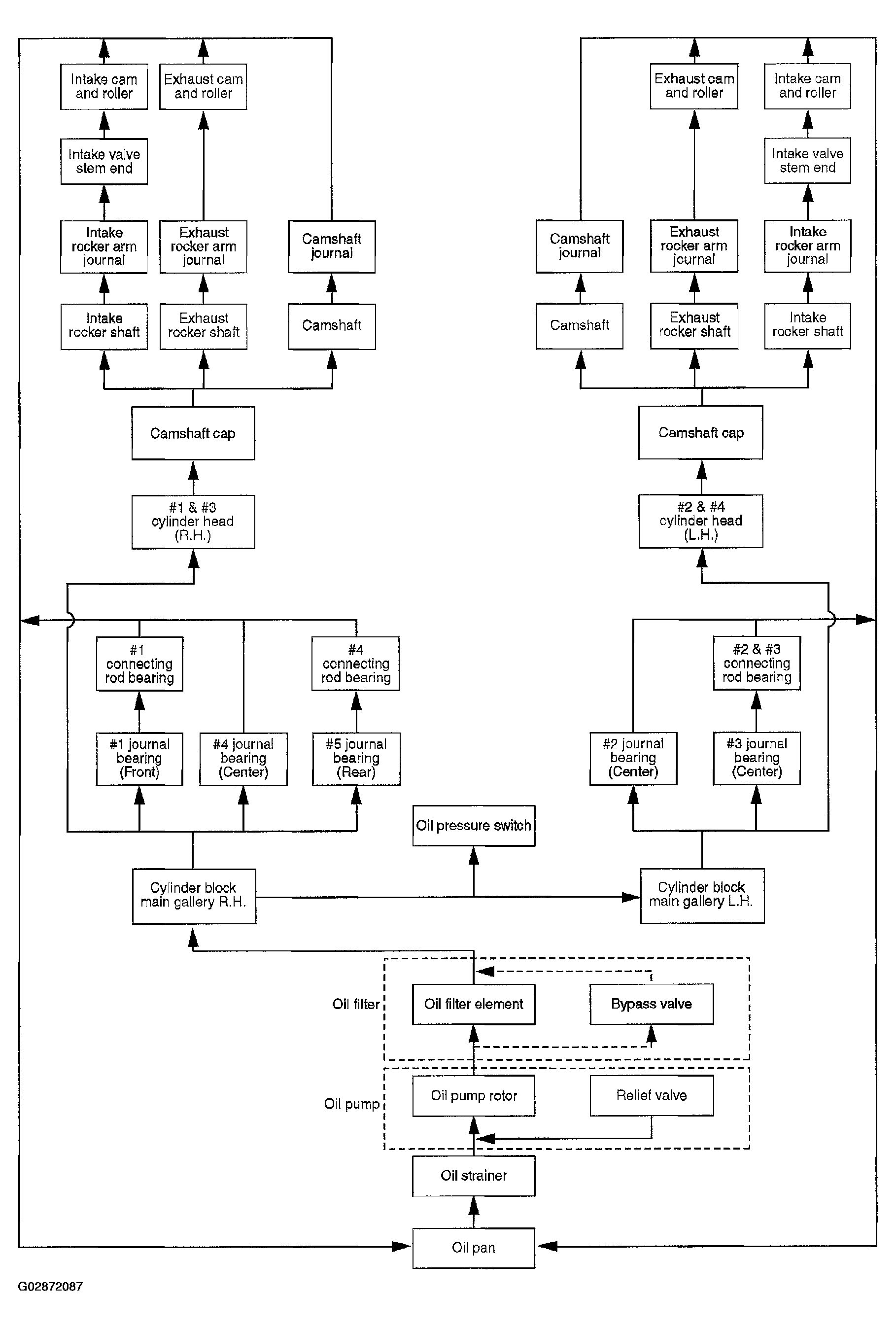

Fig 1: Identifying Engine Oil Flow Chart (Non-Turbo)

G02872087

Courtesy of SUBARU OF AMERICA, INC.
