Speedometer Gear: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install washer and speedometer shaft, and press fit oil seal with ST.
    CAUTION: Use new oil seal, if it has been removed.

    ST 899824100 or 499827000:  PRESS

  2. Install vehicle speed sensor. Refer to INSTALLATION under VEHICLE SPEED SENSOR  .
  3. Install speedometer driven gear and snap ring.
    CAUTION: Use new snap ring, if it has been removed.

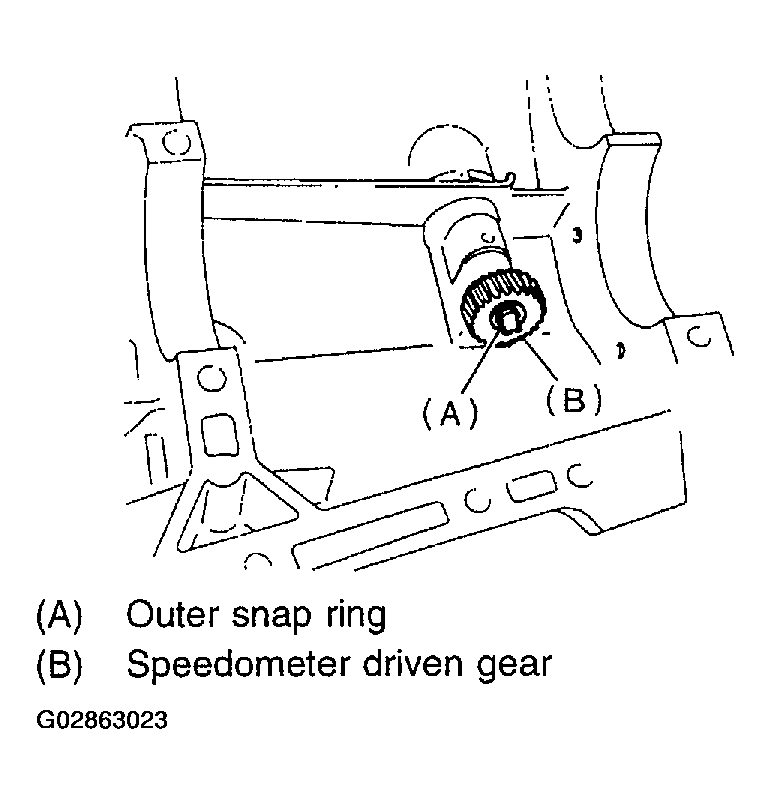

    Fig 1: Installing Speedometer Driven Gear And Snap Ring
    G02863023Courtesy of SUBARU OF AMERICA, INC.
  4. Install transmission case. Refer to INSTALLATION under TRANSMISSION CASE  .
  5. Install transfer case with extension case assembly. Refer to INSTALLATION under TRANSFER CASE AND EXTENSION CASE ASSEMBLY  .
  6. Install back-up light switch and neutral position switch. Refer to INSTALLATION under SWITCHES AND HARNESS  .
  7. Install the manual transmission assembly to vehicle. Refer to INSTALLATION under MANUAL TRANSMISSION ASSEMBLY  .
