Main Shaft

WARNING: This page is about a different variant/trim than selected.

Snap ring (Outer-25) to synchronizer hub clearance  0.060-0.100 mm (0.0024-0.0039 in)

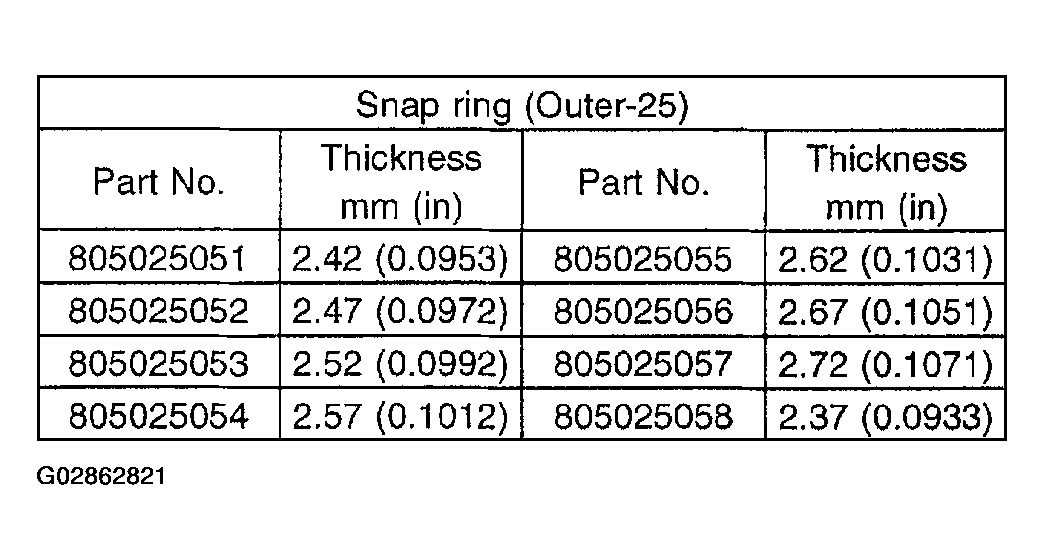

Fig 1: Main Shaft Snap Ring Thickness Specification
G02862821Courtesy of SUBARU OF AMERICA, INC.
