Hazard Switch
WARNING: This page is about a different car, the 2004 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
Measure the hazard switch resistance.

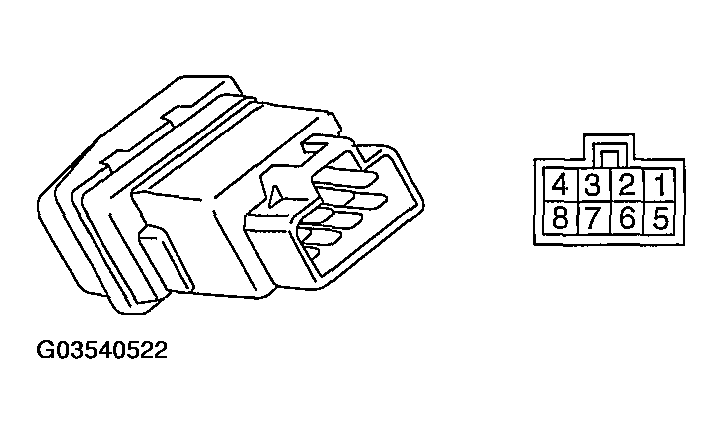

Courtesy of SUBARU OF AMERICA, INC. TERMINAL CHART
| Switch position |
Terminal No. |
Standard |
| OFF |
6 and 7 |
Less than 1 ohm |
| ON |
1, 3 and 4 |
Less than 1 ohm |
| 7 and 8 |
Less than 1 ohm |
