Hazard Switch

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Measure the hazard switch resistance.

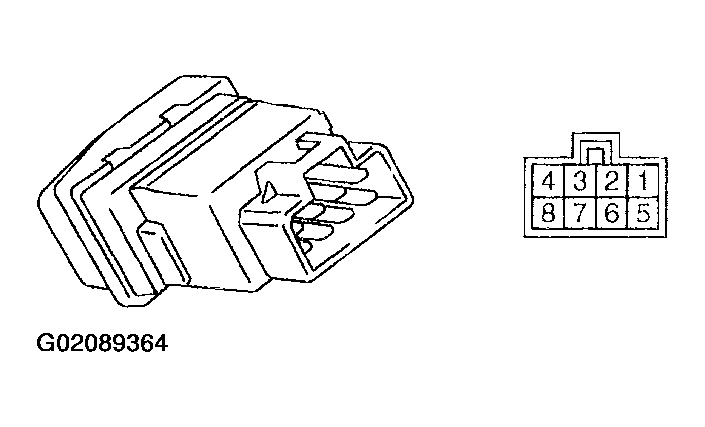

Fig 1: Measuring Hazard Switch Resistance
G02089364Courtesy of SUBARU OF AMERICA, INC.

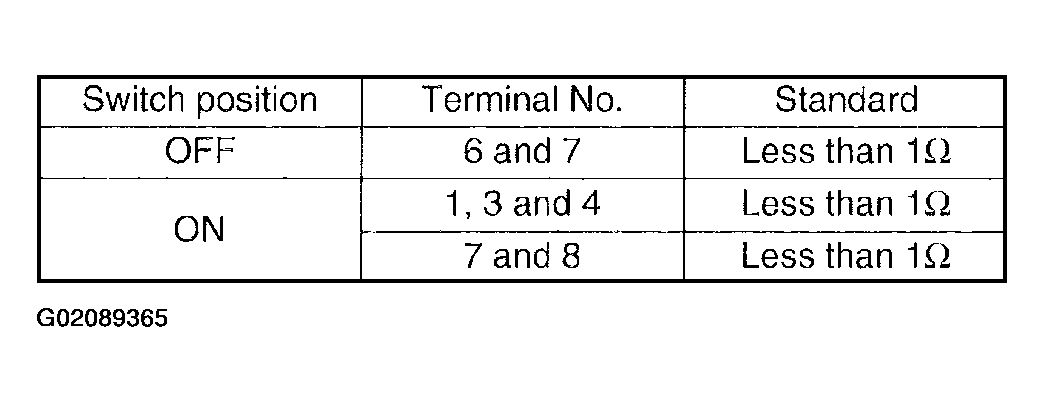

Fig 2: Hazard Switch Resistance Chart
G02089365Courtesy of SUBARU OF AMERICA, INC.
