Stop Light Switch

Measure the stop light switch resistance.

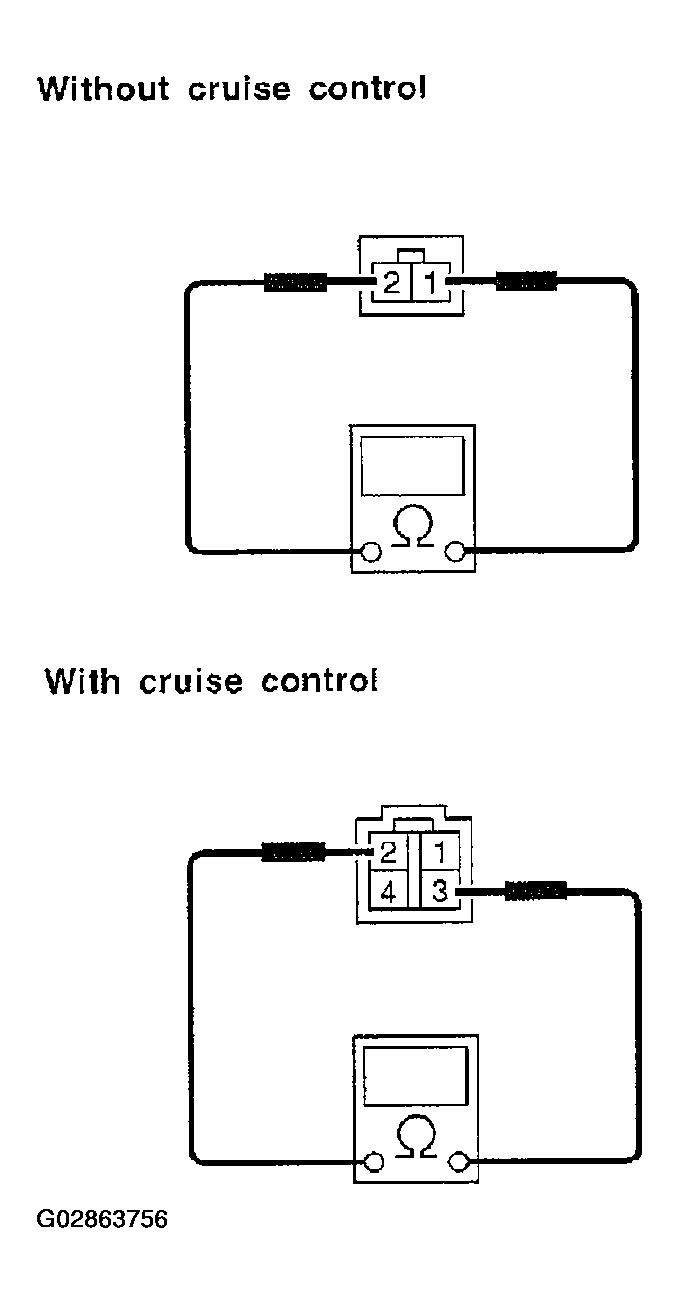

Fig 1: Measuring Stop Light Switch Resistance
G02863756Courtesy of SUBARU OF AMERICA, INC.

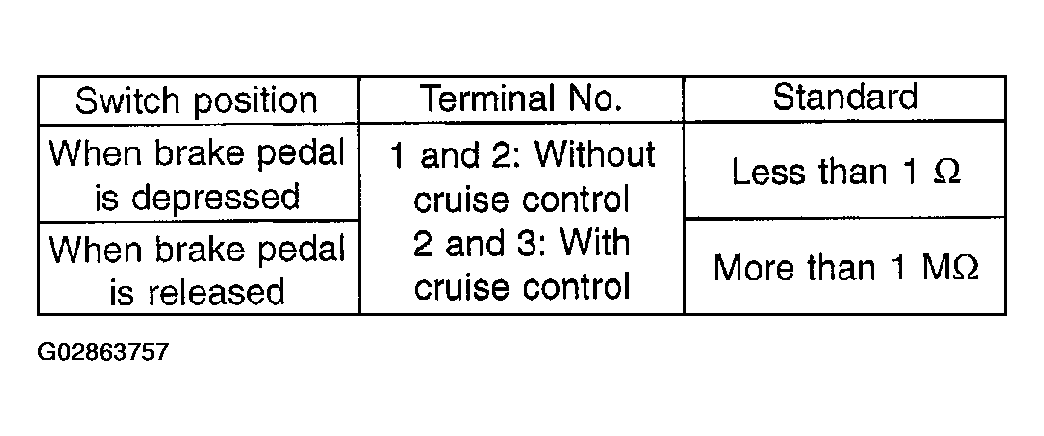

Fig 2: Stop Light Switch Resistance Specifications
G02863757Courtesy of SUBARU OF AMERICA, INC.
