Diagnostics Chart with Symptom
>>
Symptom Chart
Symptom Chart

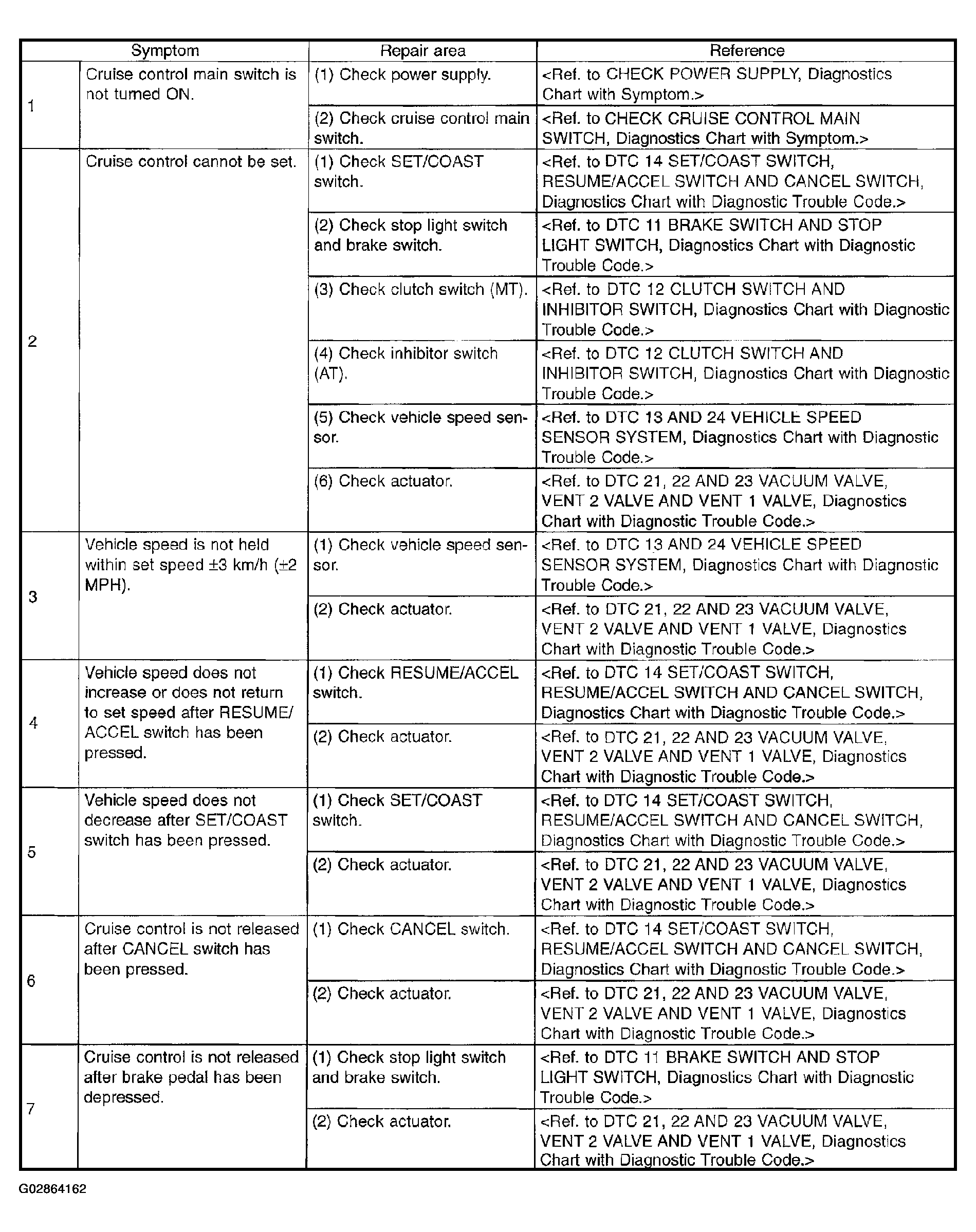

Fig 1: Diagnostics Symptom Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

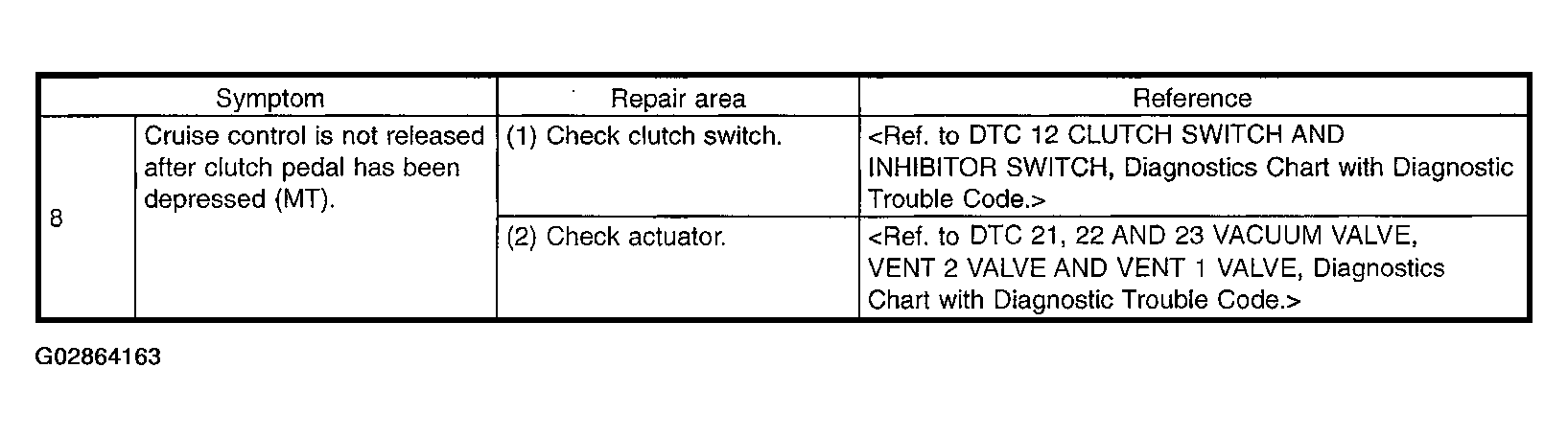

Fig 2: Diagnostics Symptom Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
