Engine Oil Filter: Removal

  1. Drain engine oil by loosening engine oil drain plug.
    Fig 1: Identifying Engine Oil Drain Plug
    G02113502
  2. Remove access lid.

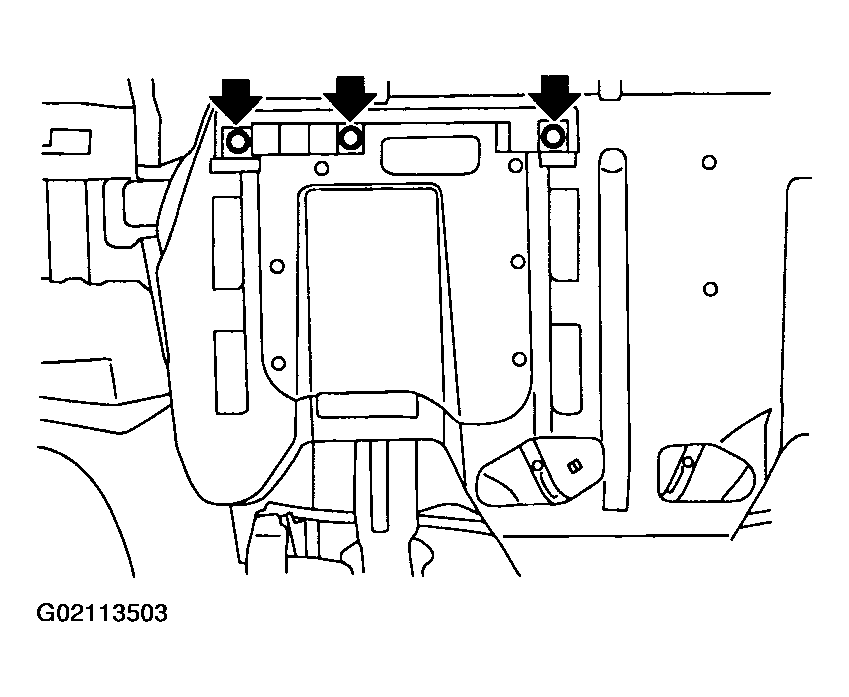

    Fig 2: Removing Access Lid
    G02113503
  3. Remove oil filter with ST.

    ST 498547000 OIL FILTER WRENCH

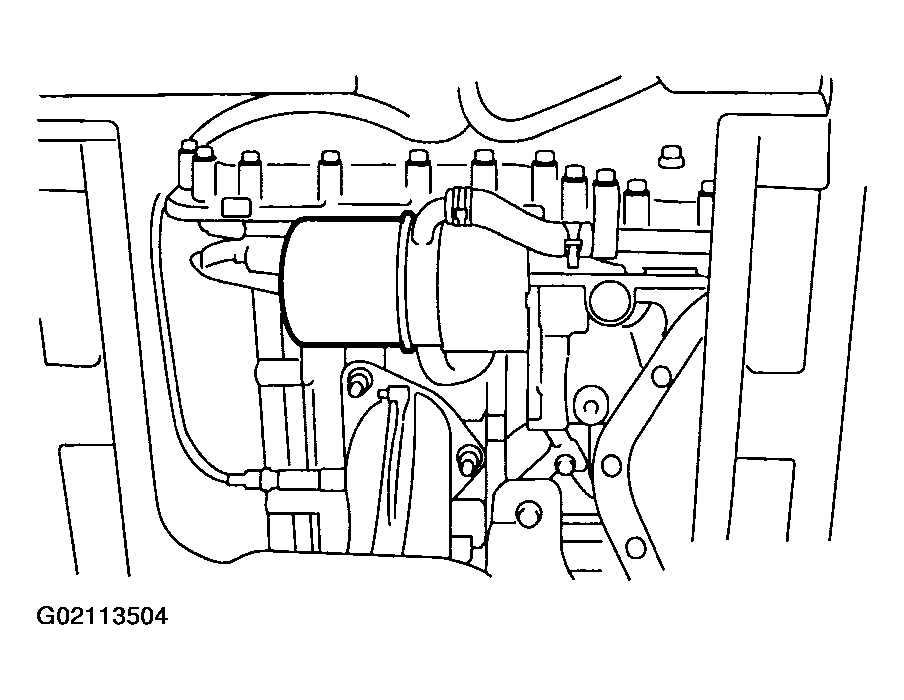

    Fig 3: Removing Oil Filter
    G02113504
