Shifter Fork And Shifter Rod
Tightening torque: N.m (kgf-m, ft-lb)
T:
19.6 (2, 14.5)

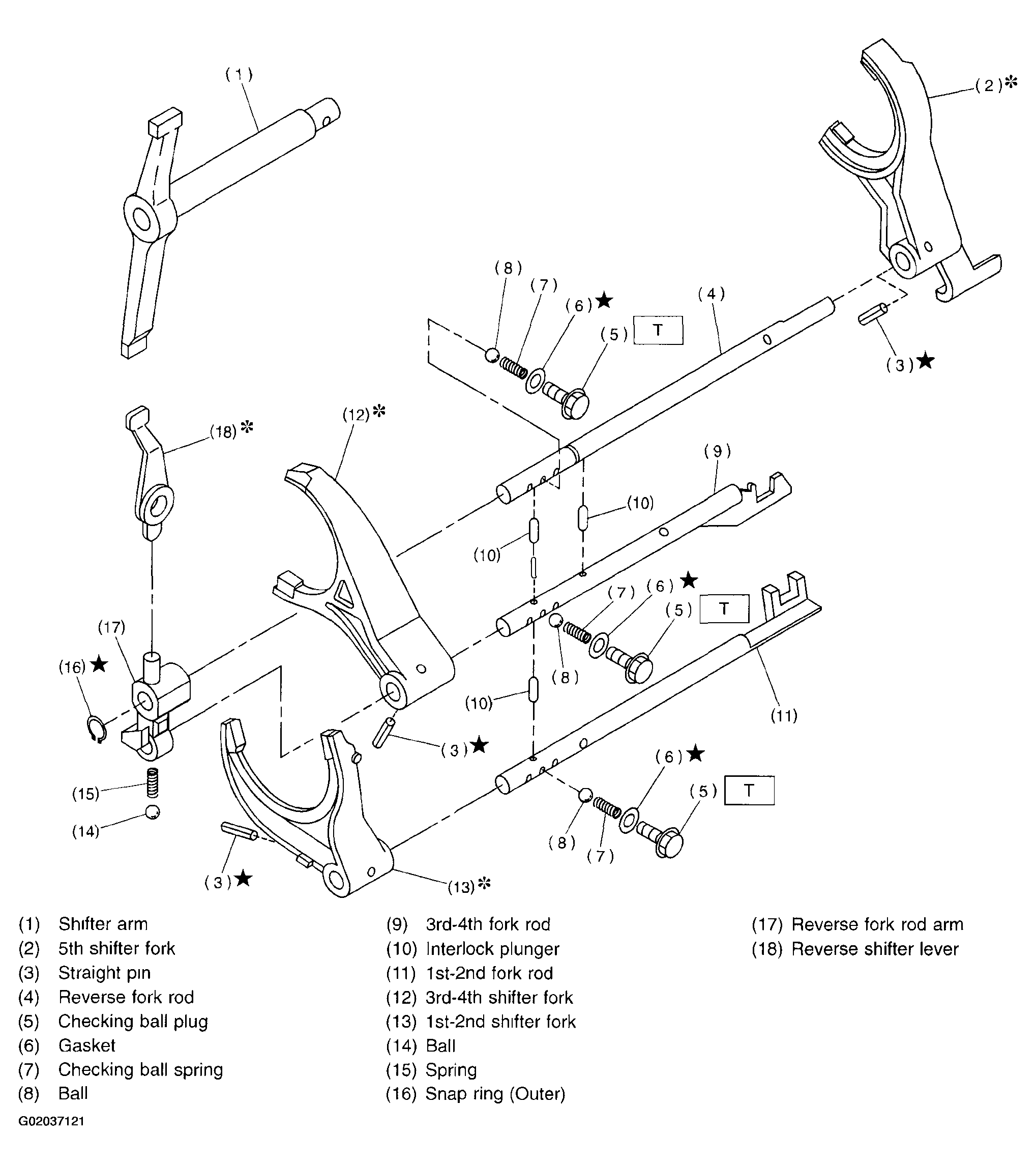

Fig 1: Shifter Fork & Shifter Rod Assembly Overview
