Home >> Subaru >> 2001 >> Outback Base, Standard >> Repair and Diagnosis >> Transmission >> Clutch System >> Clutch Disc and Cover >> Removal

Clutch Disc and Cover: Removal

  1. Remove transmission assembly from vehicle body. See MANUAL TRANSMISSION ASSEMBLY .
  2. Install ST on flywheel.

    ST 498497100 CRANKSHAFT STOPPER

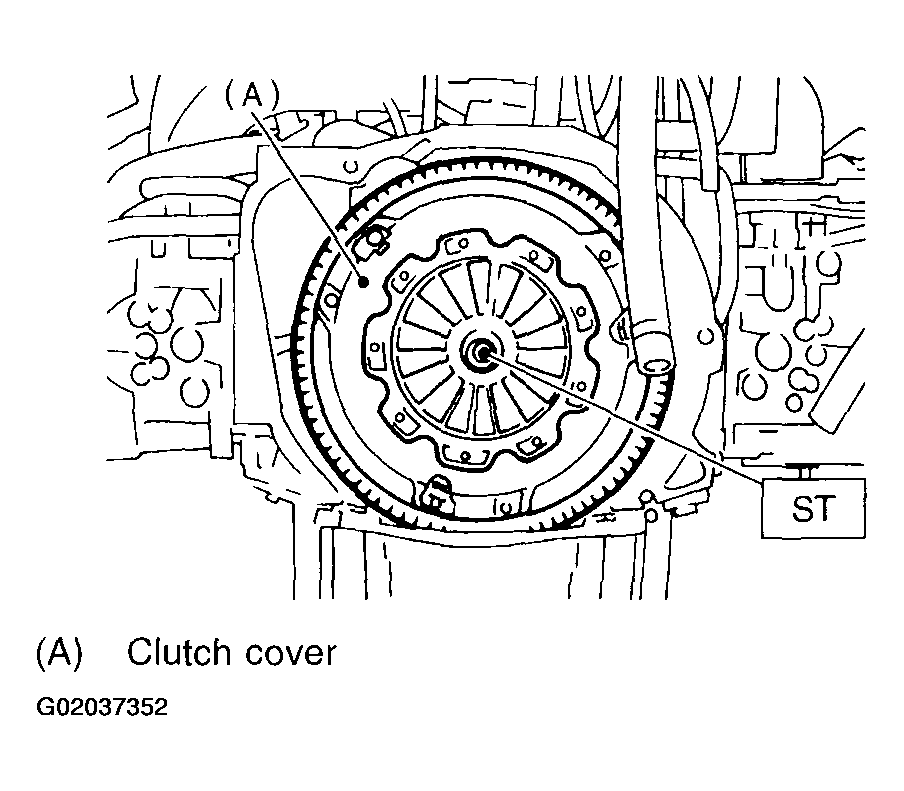

    Fig 1: Installing ST On Flywheel
    G02037352
  3. Remove clutch cover and clutch disc.
    CAUTION:
    • Take care not to allow oil on the clutch disc facing.
    • Do not disassemble either clutch cover or clutch disc.
