Front Wiper

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

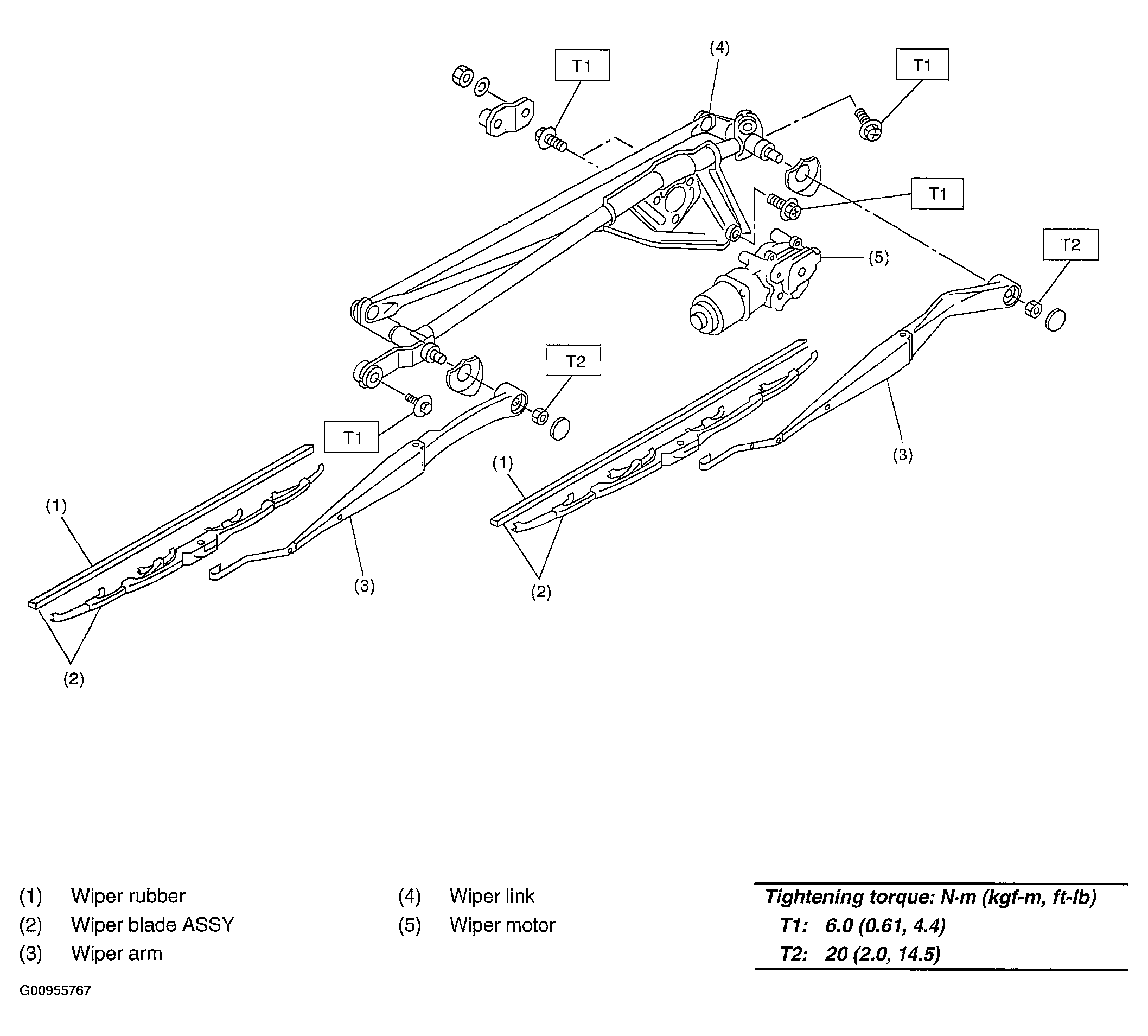

Fig 1: Identifying Front Wiper Components
G00955767Courtesy of SUBARU OF AMERICA, INC.
