Control Linkage
WARNING: This page is about a different car, the 2003 Subaru Outback and 2003 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

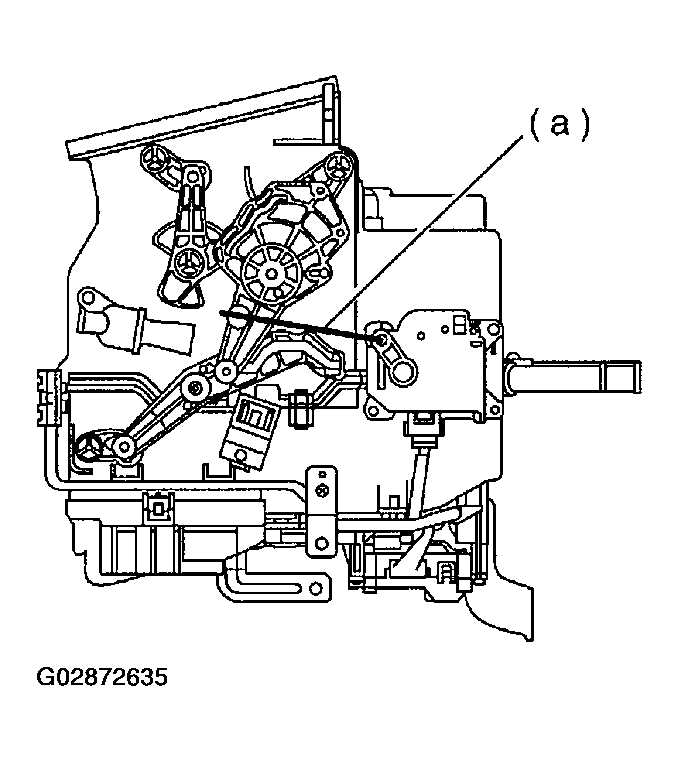

- Check state of mode door control rod and linkage.
- Check state of air mix door control rod and linkage.
- Check state of intake door control rod and linkage.
Courtesy of SUBARU OF AMERICA, INC.
- Control rod
