Valve Rocker Assembly: Installation

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Installation of valve rocker assembly
    1. Temporarily tighten bolts (a) through (d) equally as shown in figure.
      NOTE: Do not allow valve rocker assembly to gouge knock pins.
    2. Tighten bolts (e) through (h) to specified torque.
    3. Tighten bolts (a) through (d) to specified torque.
    1. Tightening torque:  25 N.m (2.5 kgf-m, 18.1 ft-lb)

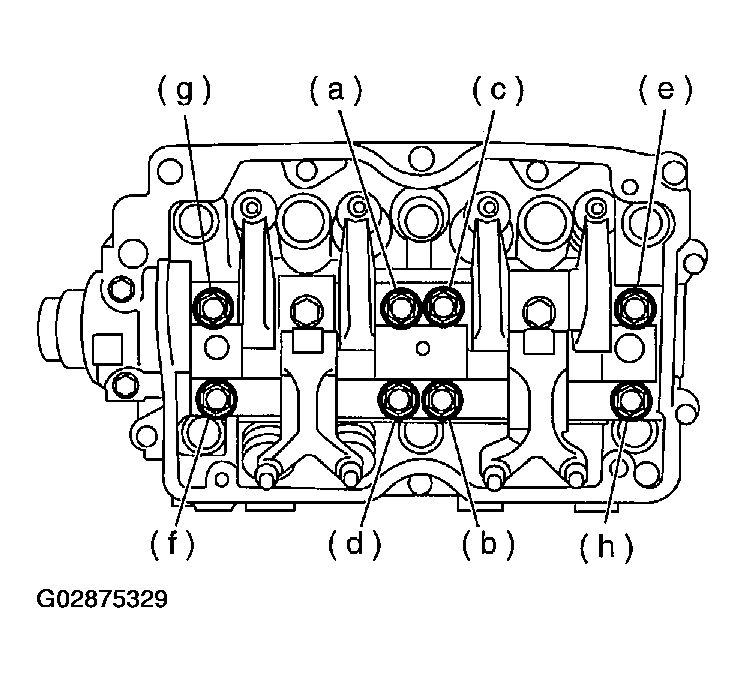

    Fig 1: Tightening Valve Rocker Bolt
    G02875329Courtesy of SUBARU OF AMERICA, INC.
  2. Adjust the valve clearances. See ADJUSTMENT , Valve Clearances.
  3. Install rocker cover. Tightening torque:  5 N.m (0.5 kgf-m, 3.6 ft-lb). Connect PCV hose.
  5. Install camshaft sprocket. See INSTALLATION , Camshaft Sprockets.
  6. Install timing belt assembly. See INSTALLATION , Timing Belt Assembly.
  7. Install belt cover. See INSTALLATION , Belt Cover.
  8. Install crankshaft pulley. See INSTALLATION , Crankshaft Pulley.
  9. Install V-belt. See INSTALLATION , V-belt.
