Subaru
>>
2001
>>
Outback Base, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Braking System (Diagnostics)
>>
List of Diagnostics Trouble Code
>>
Without SUBARU Select Monitor
Without SUBARU Select Monitor

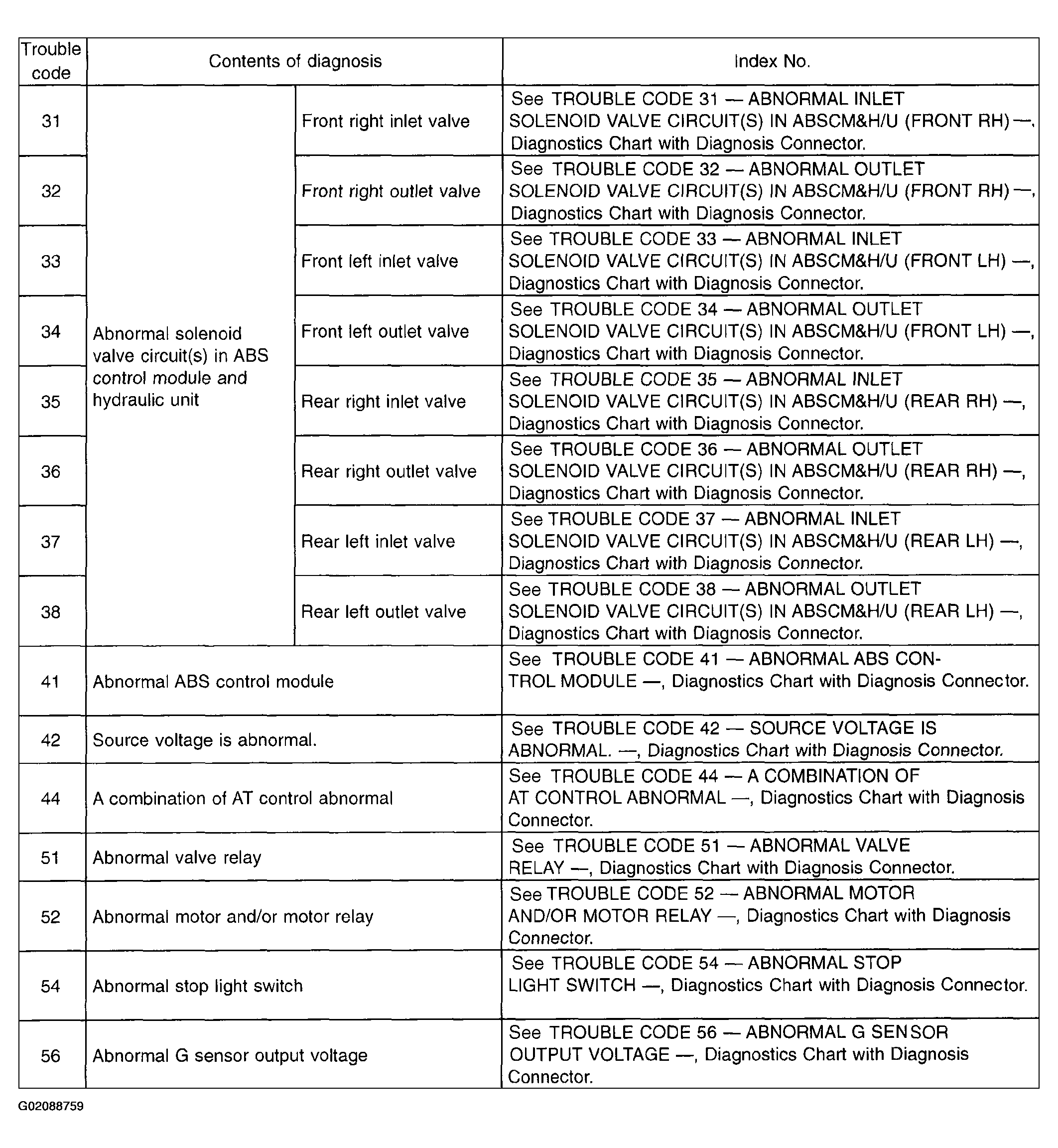

Fig 1: Diagnostics Trouble Code Chart (Without Subaru Select Monitor - 1 Of 2)
Fig 2: Diagnostics Trouble Code Chart (Without Subaru Select Monitor - 2 Of 2)
