Code 75: Line Pressure Duty Solenoid: Trouble Symptom

Excessive shift shock.

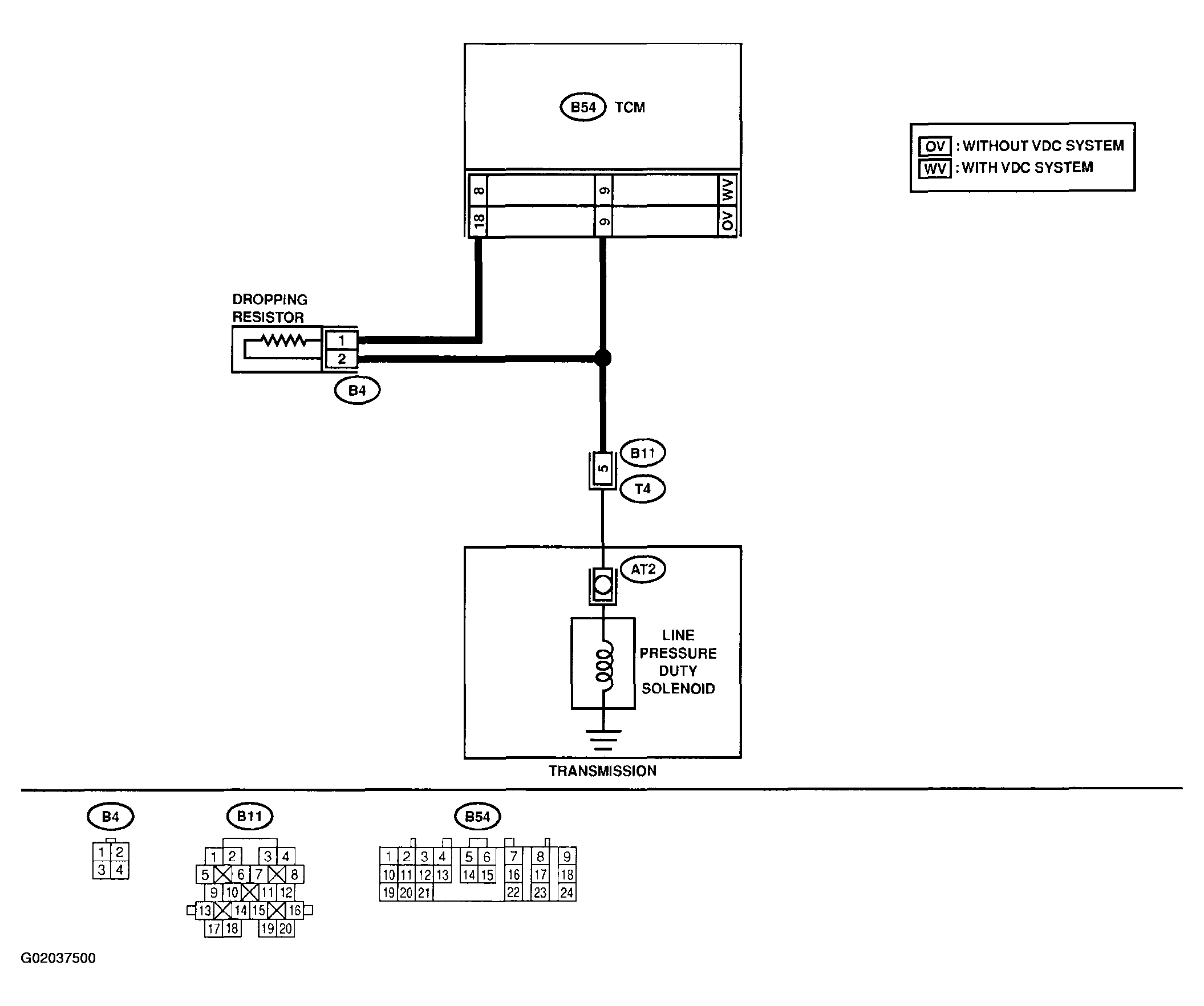

Fig 1: Trouble Code 75 - Line Pressure Duty Solenoid Wiring Diagram

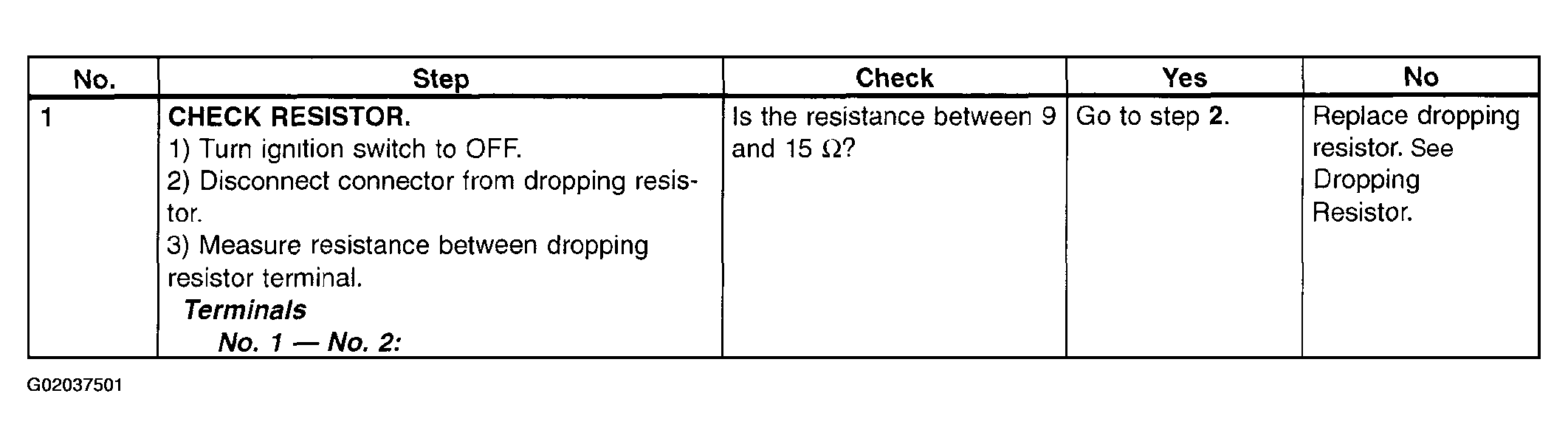

Fig 2: Trouble Code 75 - Diagnostic Chart (1 Of 5)

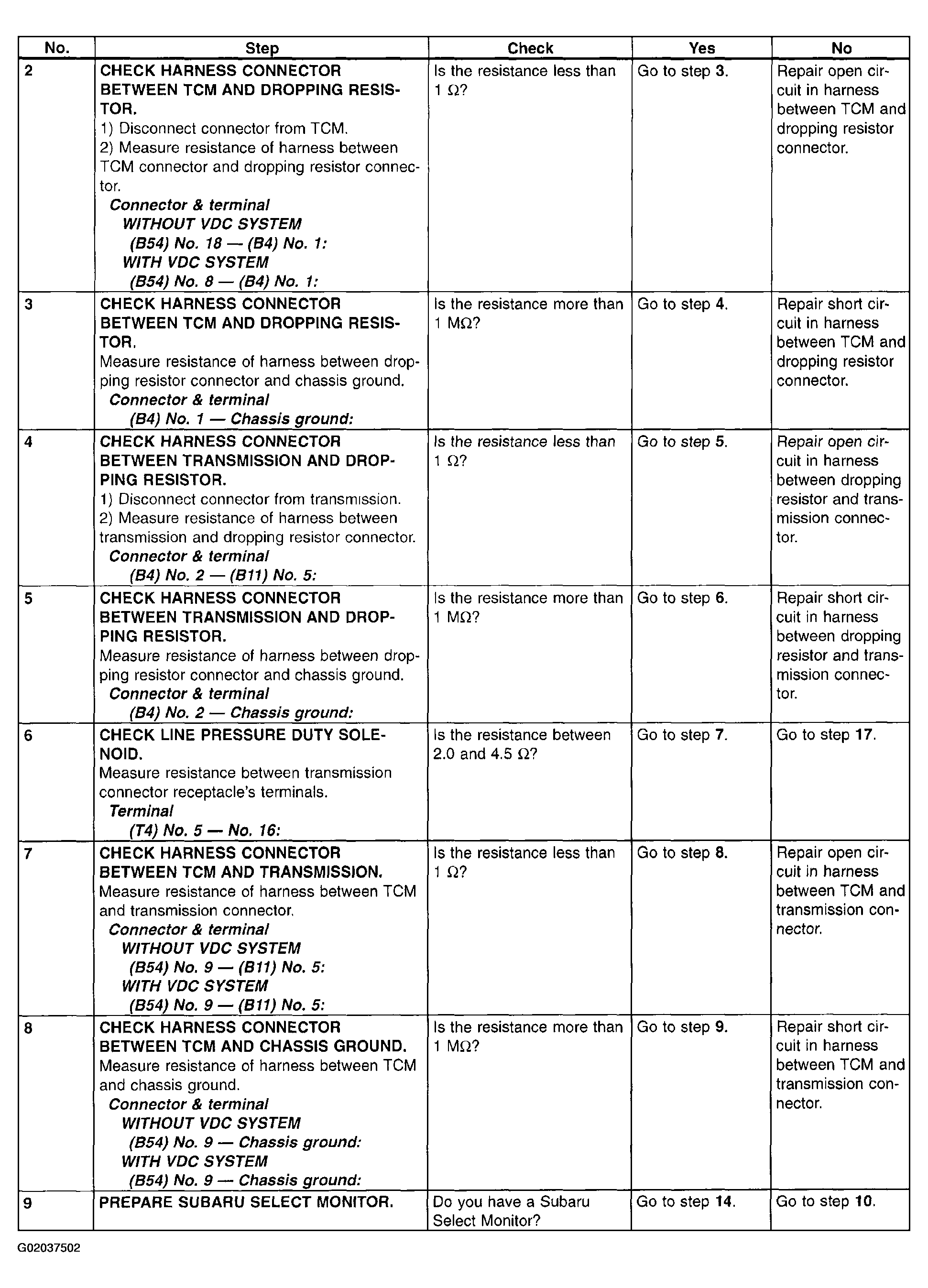

Fig 3: Trouble Code 75 - Diagnostic Chart (2 Of 5)

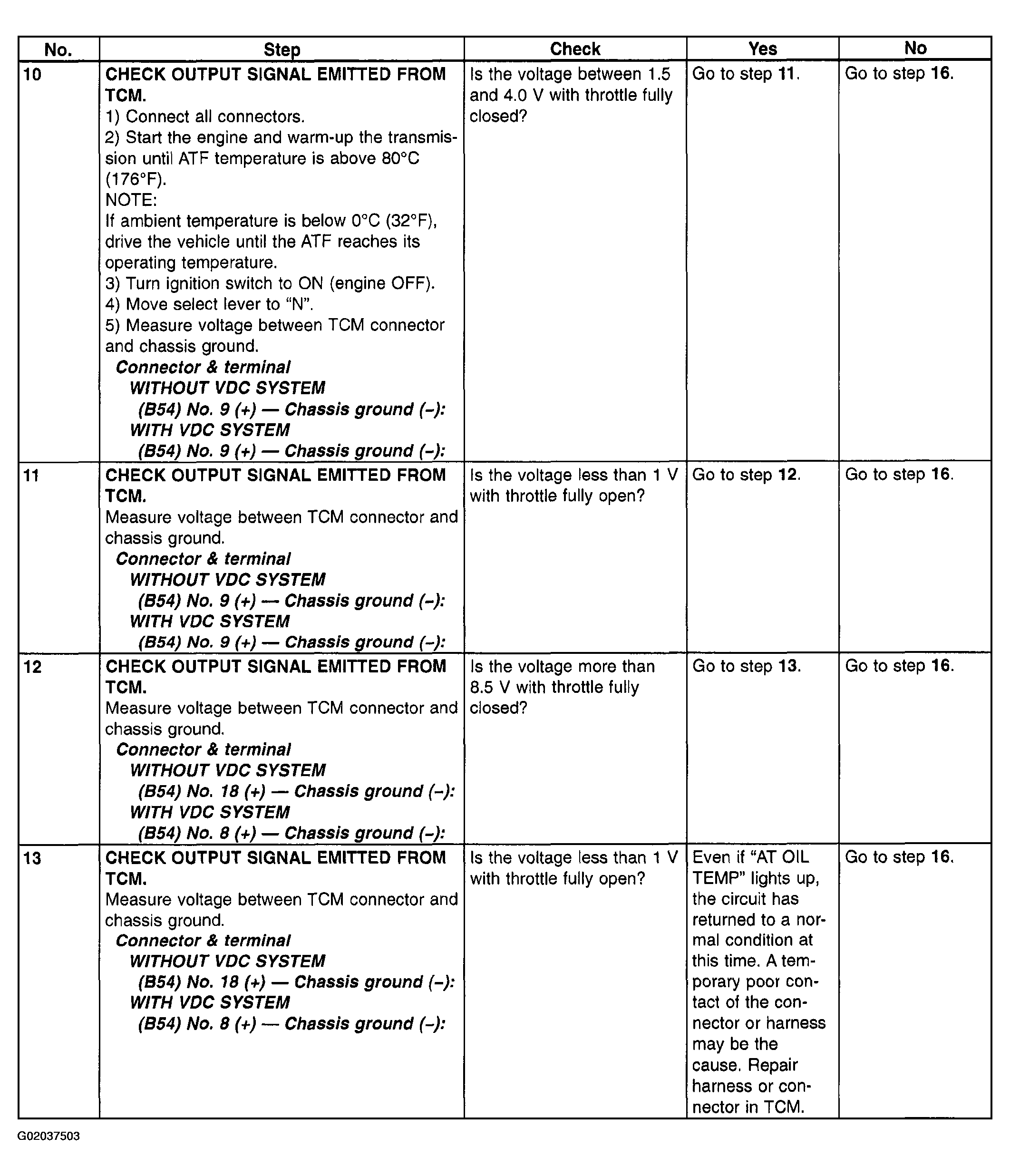

Fig 4: Trouble Code 75 - Diagnostic Chart (3 Of 5)

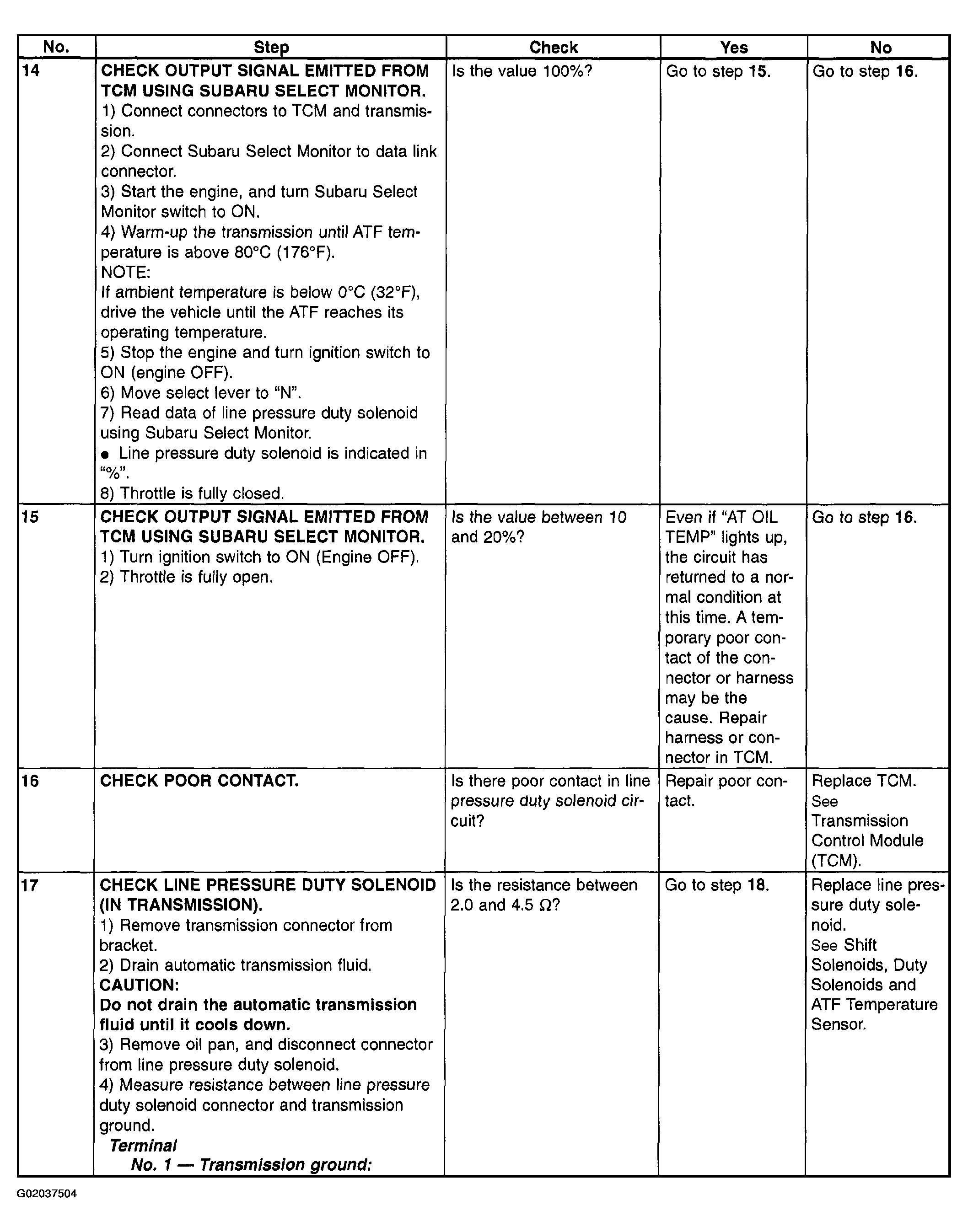

Fig 5: Trouble Code 75 - Diagnostic Chart (4 Of 5)

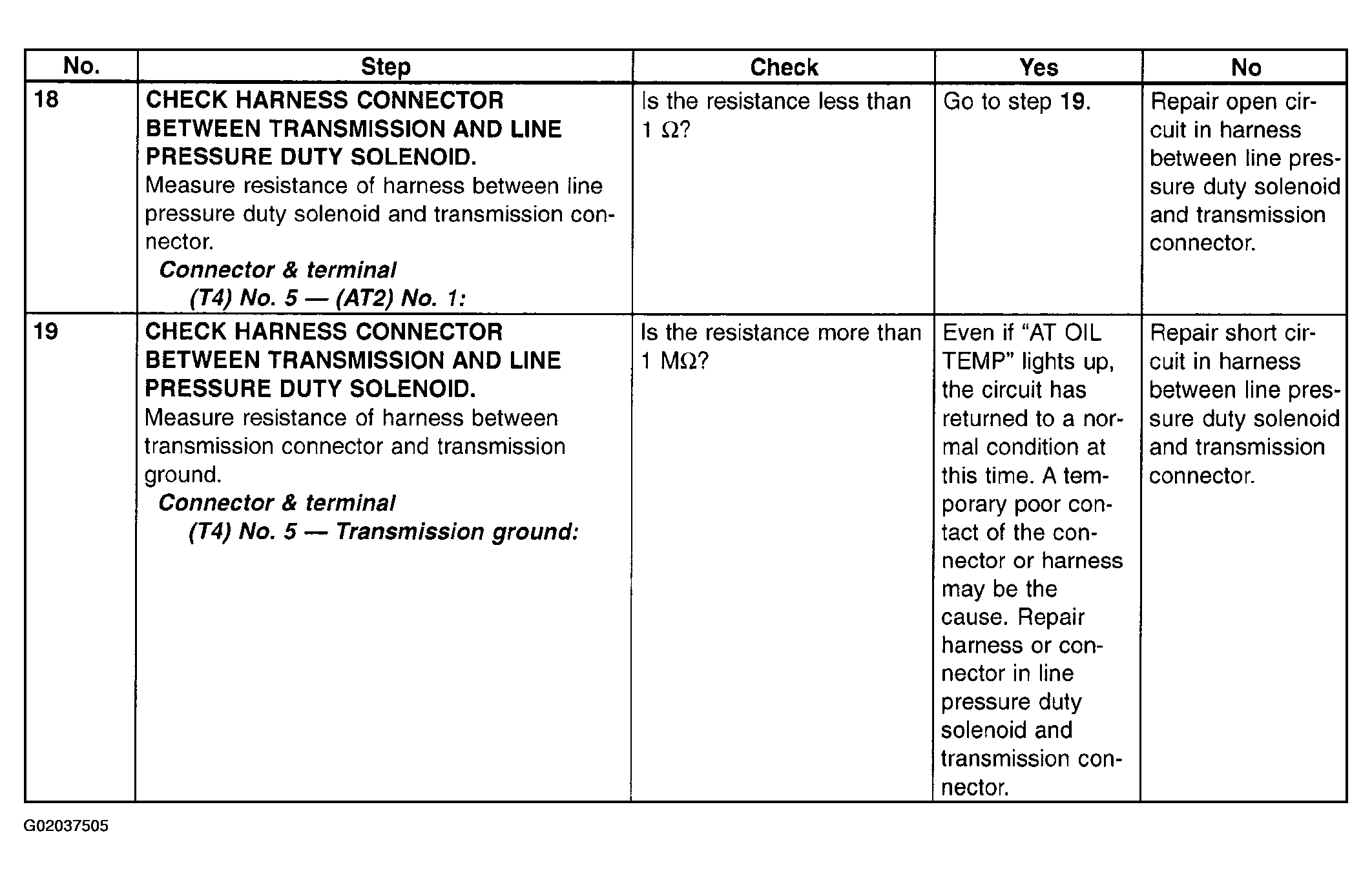

Fig 6: Trouble Code 75 - Diagnostic Chart (5 Of 5)
