Purge Control Solenoid Valve: Installation

Install in the reverse order of removal.

  1. Tightening torque:  16 N.m (1.6 kgf-m, 11.6 ft-lb)

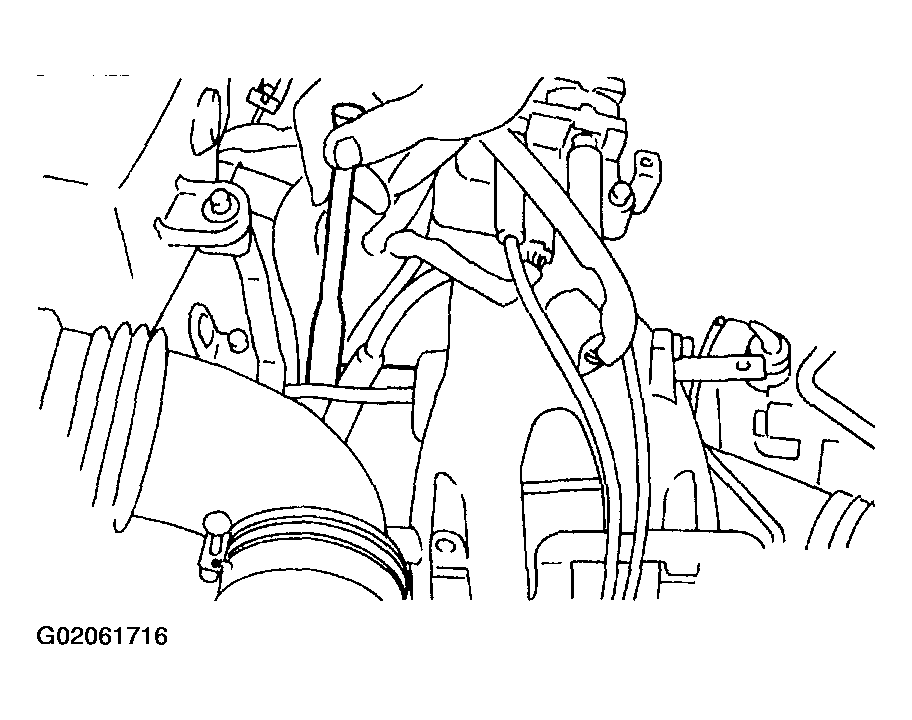

Fig 1: Installing Purge Control Solenoid Valve In Reverse Order
G02061716
CAUTION: Carefully connect the evaporation hoses.

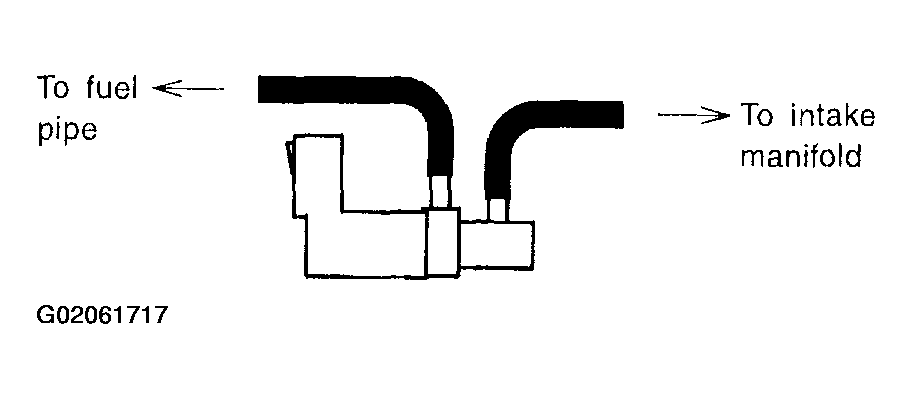

Fig 2: Connecting Evaporation Hoses
G02061717
