Clutch Disc And Cover: Removal

  1. Install ST on flywheel.

    ST 498497100 CRANKSHAFT STOPPER

    Fig 1: Identifying Placement Of Crankshaft Stopper On Flywheel
    G02013229
  2. Remove clutch cover and clutch disc.
    CAUTION:
    • Take care not to allow oil on the clutch disc facing.
    • Do not disassemble either clutch cover or clutch disc.
  3. Remove flywheel.

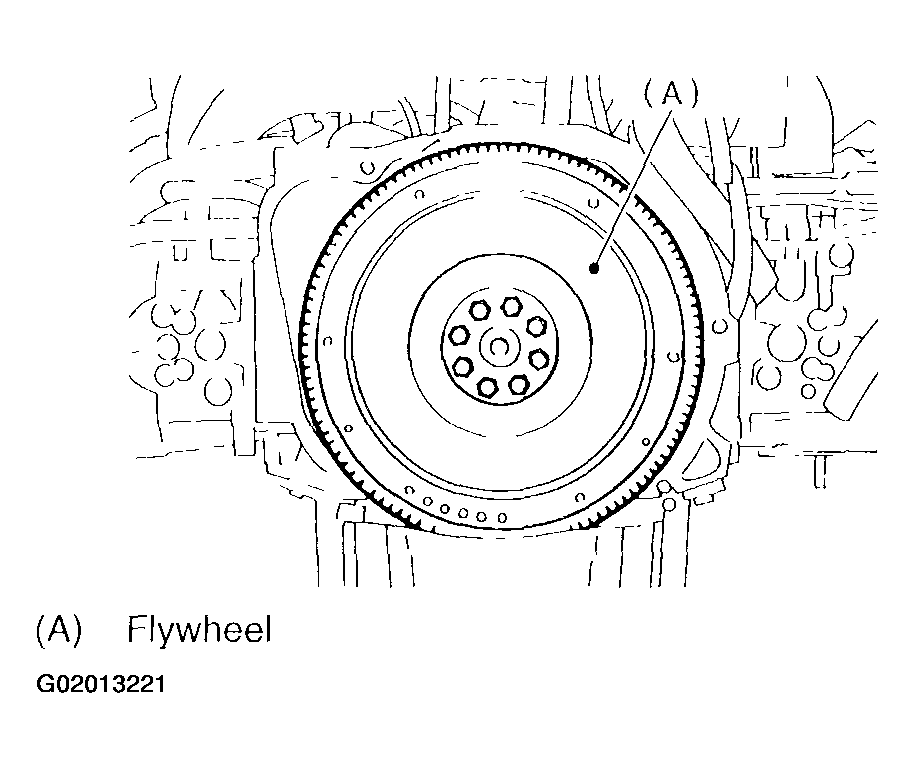

    Fig 2: Removing Clutch Cover & Clutch Disc & Flywheel
    G02013221
