Extension Assembly

Thrust washer (52 x 61 x t) to ball bearing side clearance:

0.05 - 0.30 mm (0.0020 - 0.0118 in)

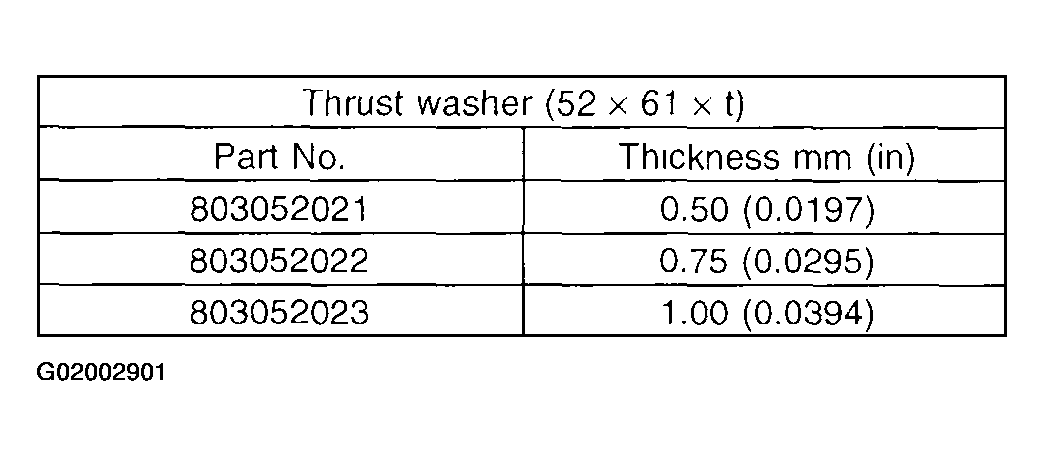

Fig 1: Thrust Washer (52 X 61 X t) Chart

Thrust washer to center differential side clearance:

0.15 - 0.35 mm (0.0059 - 0.0138 in)

Fig 2: Thrust Washer To Center Differential Chart
