Brake Duty Solenoid

This solenoid is mounted to the control valve, and its duty ratio is controlled by the signal sent from TCM. It modulates the 2-4 brake duty pressure when the 2-4 brake is operated, reducing shifting shocks.

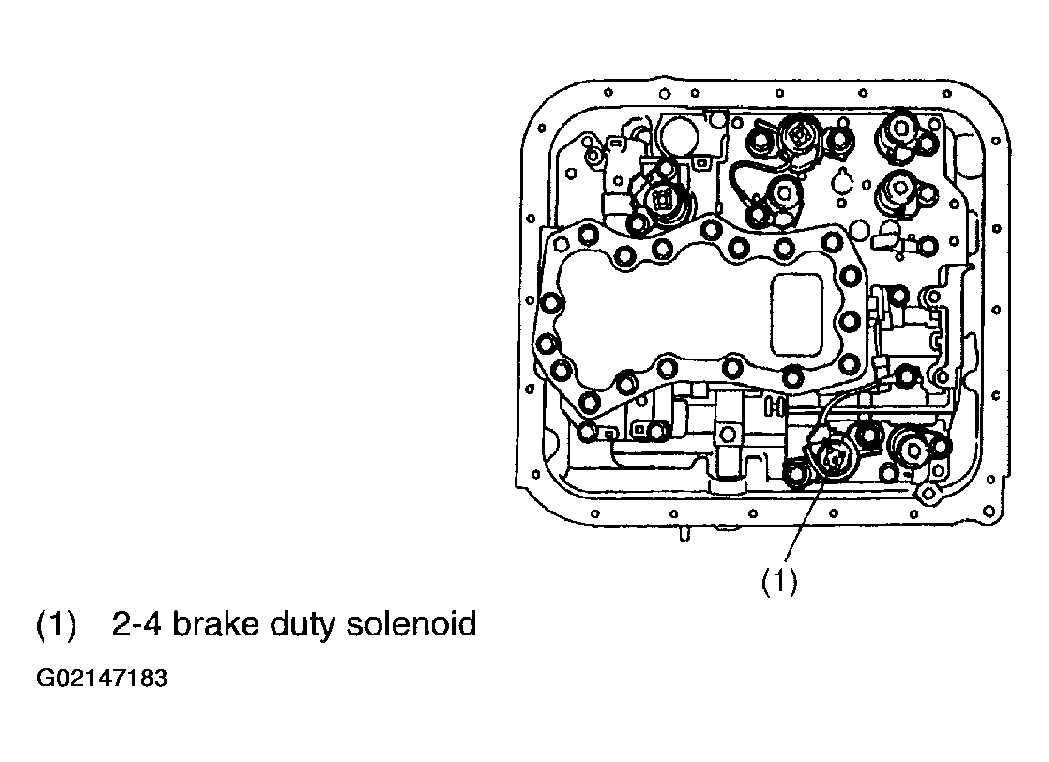

Fig 1: Identifying Brake Duty Solenoid
G02147183
