Section 15 (Air Conditioning System)
>>
Diagnostics
>>
Air Conditioning System Diagnosis
Air Conditioning System Diagnosis
WARNING:
This page is about a different car, the 2001 Subaru Forester and 2000 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

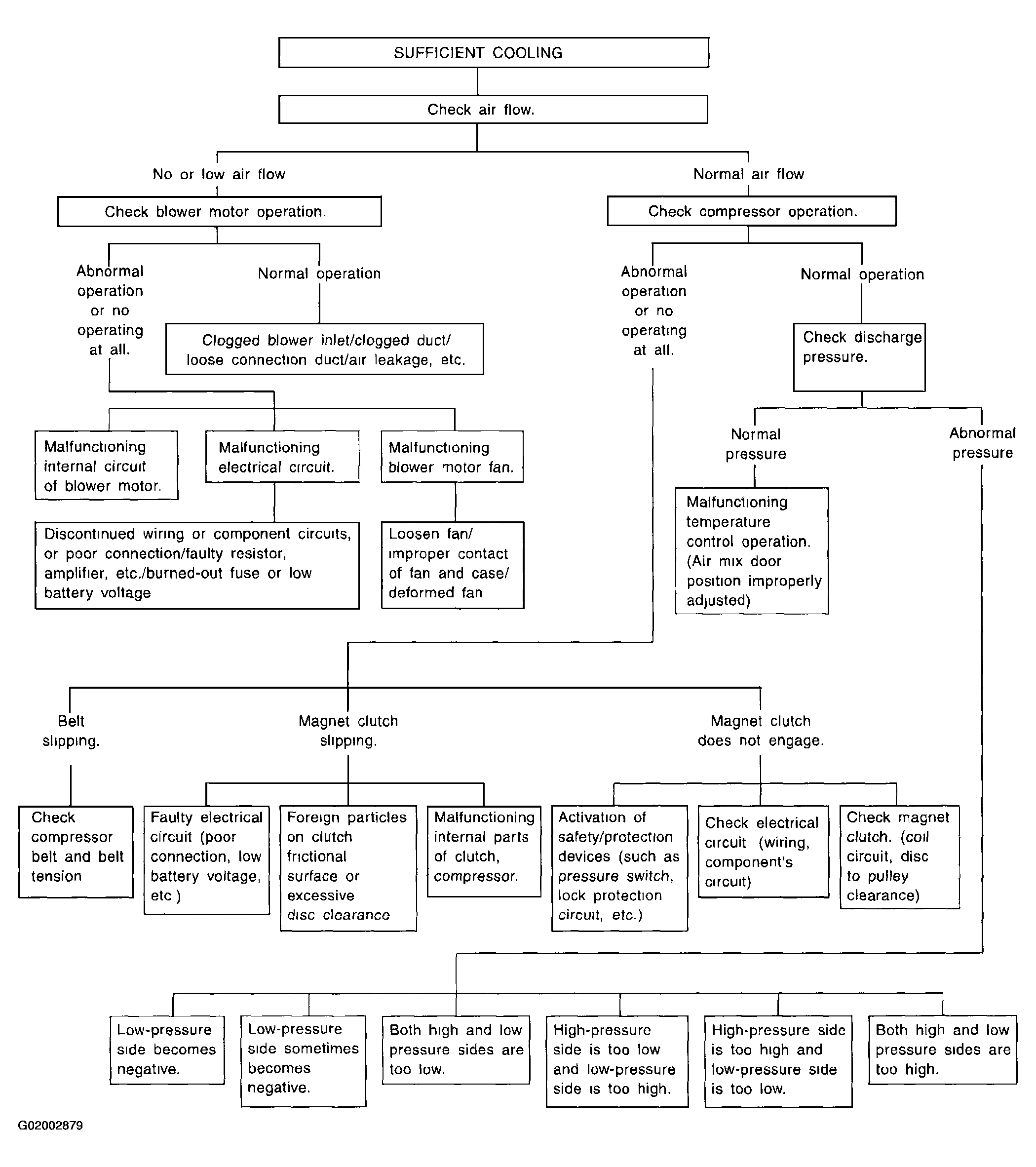

Fig 1: Air Conditioning System Diagnosis Chart
