Differentials & Drive Axles: Overhaul: Notes

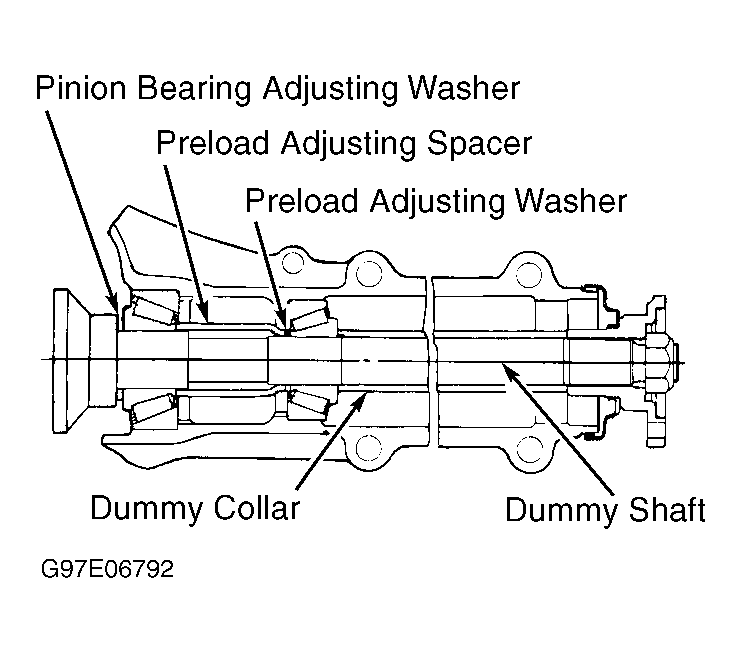

Fig 1: Installing Dummy Shaft

G97E06792

Courtesy of SUBARU OF AMERICA, INC.

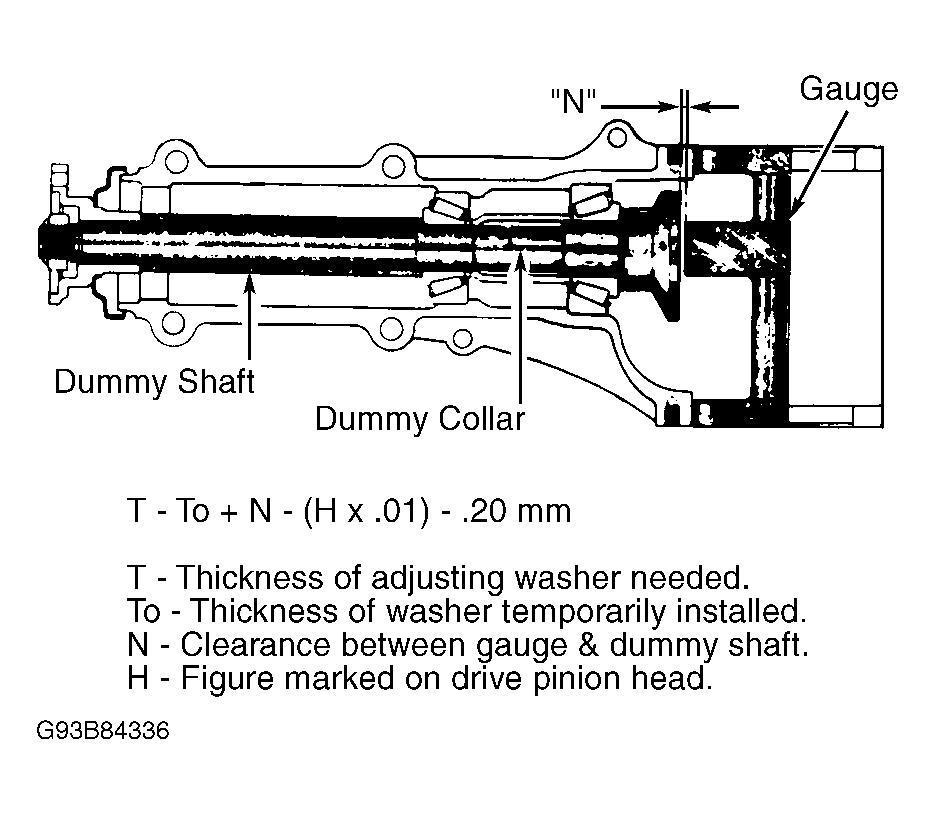

Fig 2: Measuring Drive Pinion Gear Installed Height

G93B84336

Courtesy of SUBARU OF AMERICA, INC.
