Control Unit: Removal

WARNING: This page is about a different car, the 1996 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, see SERVICE PRECAUTIONS . Disable SRS. See DISABLING & ACTIVATING AIR BAG SYSTEM . Control unit is located under front console box. See Fig 1 .

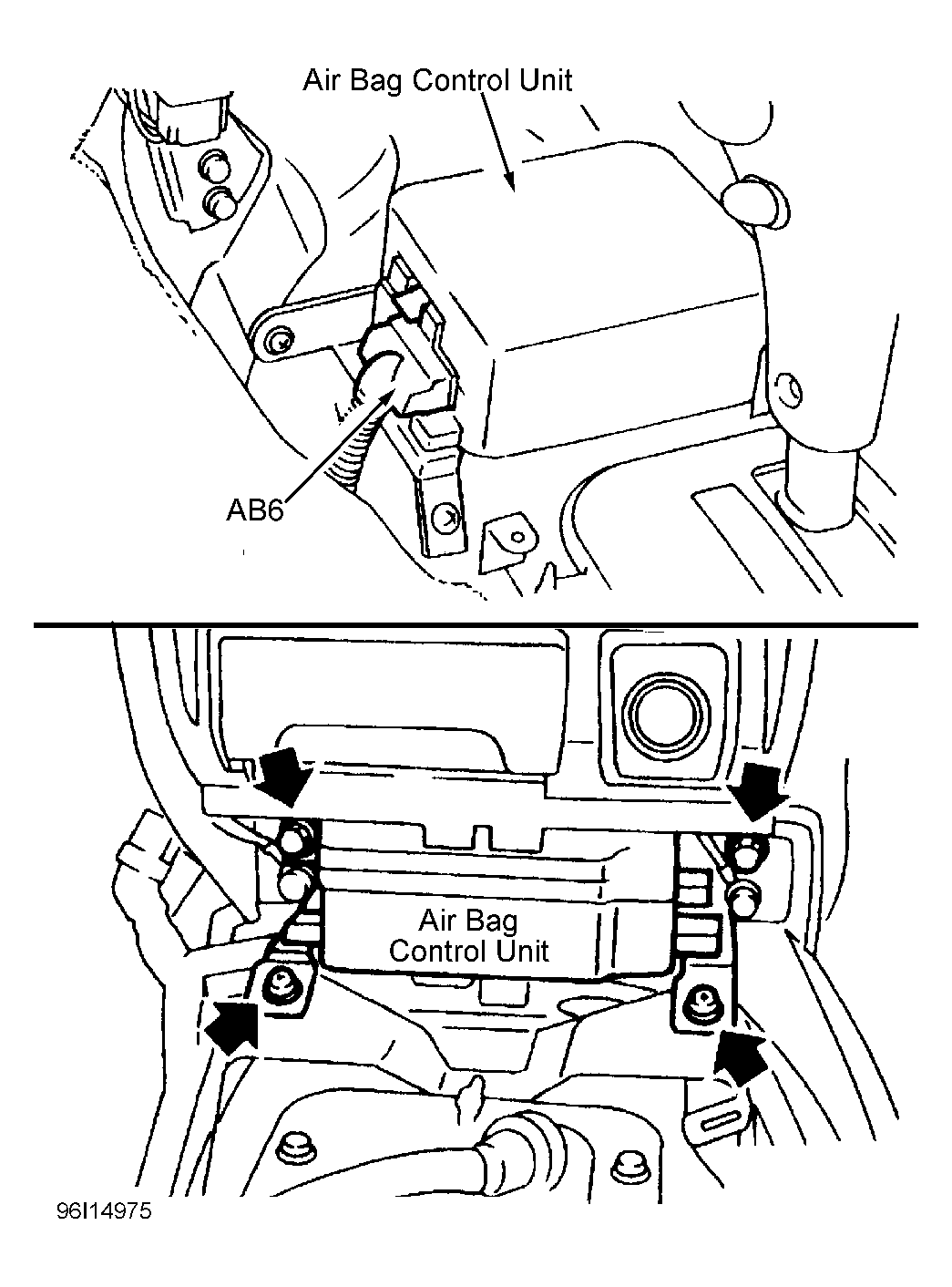

Fig 1: Locating & Removing Control Unit
Courtesy of SUBARU OF AMERICA, INC.
Remove lower trim panel from dash. Unplug air bag module 3-pin Yellow connector AB3 and AB8 at base of steering column. See Fig 2 . Remove console box. Unplug control unit connectors. Remove 2 Torx bolts. Discard Torx bolts. Remove control unit.

Fig 2: Locating Yellow Connectors

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Separating Double Lock Connectors

Courtesy of SUBARU OF AMERICA, INC.
