Sealing Cover: Removal

Use illustration to support removal & installation procedure. See Fig 1 .

1. Remove trim panel.
2. Remove harness cover tape adhering sealing cover, then remove trim bracket.
3. Remove sealing cover and sealer with a spatula.
   CAUTION:

   1. Sealing cover may break if sealer is removed forcefully.
   2. Detach sealing cover in one quick motion so that sealer is left on the cover side.
4. Disconnect speaker connector.

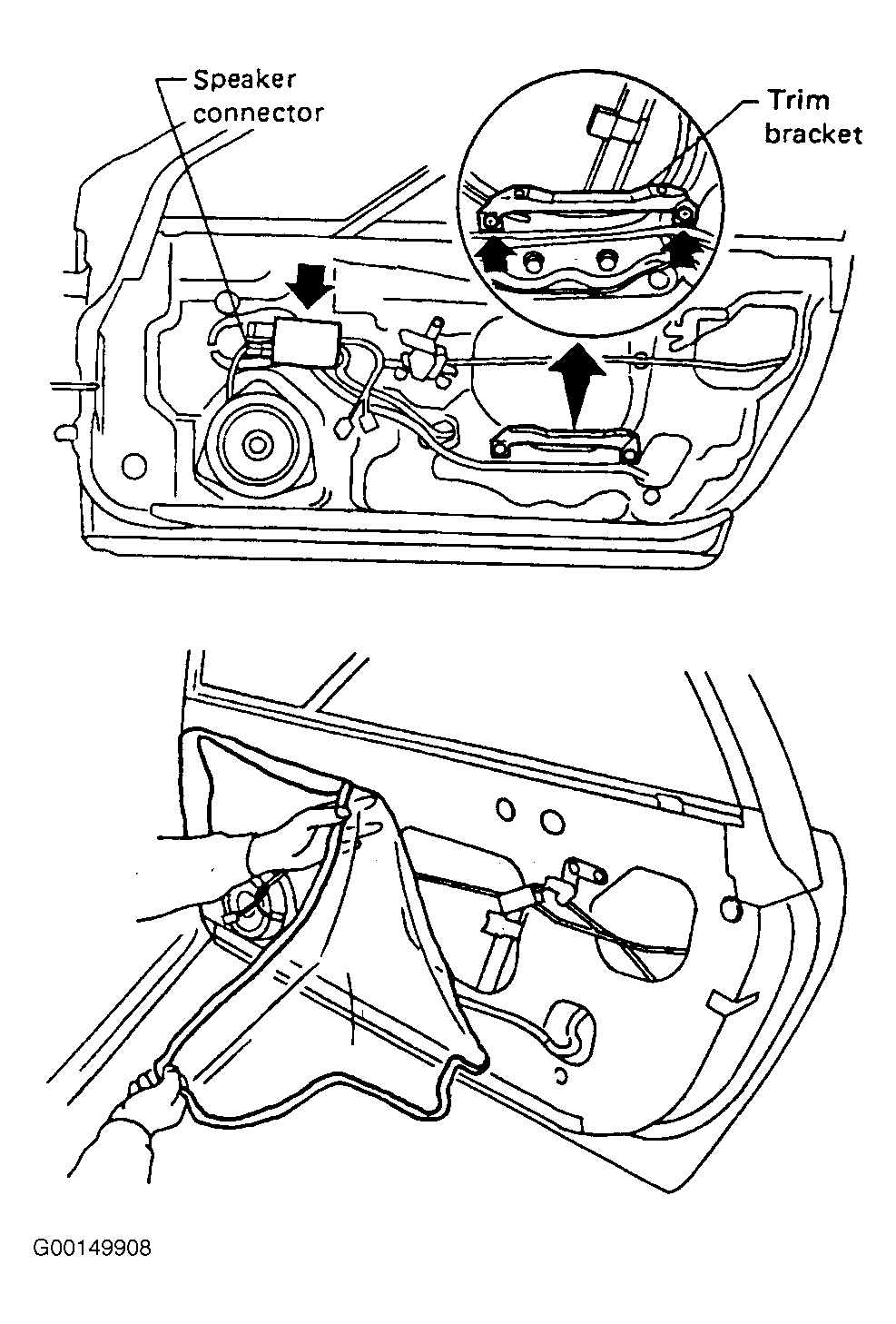

Fig 1: Sealer Cover Removal Procedure

Courtesy of SUBARU OF AMERICA, INC.
