Components [06/2015 - ]: Illustration

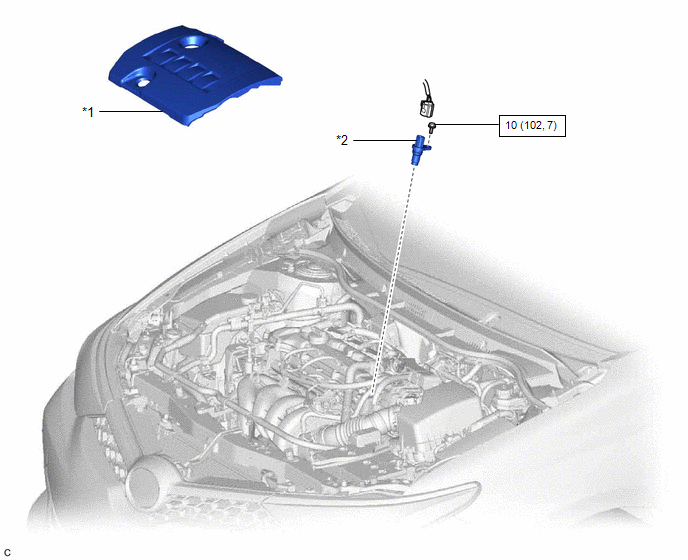

Fig 1: Valvematic Shaft Sensor Replacement Components With Torque Specifications
GTY483099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 2 CYLINDER HEAD COVER *2 VALVEMATIC SHAFT SENSOR (NO. 1 CRANK POSITION SENSOR)
N*m (kgf*cm, ft.*lbf): Specified torque - -
