Removal [06/2015 - ]: Procedure

  1. REMOVE FRONT NO. 3 ENGINE UNDER COVER
    1. Remove the 4 clips and front No. 3 engine under cover.

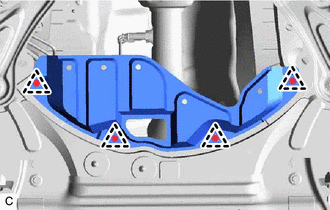

      GTY494743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE HEATED OXYGEN SENSOR
    1. Disconnect the heated oxygen sensor connector.

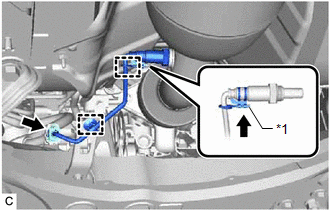

      GTY493584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Wire Harness Clamp Bracket
    2. Disengage the 2 wire harness clamps.
    3. Remove the wire harness clamp bracket from the heated oxygen sensor.
    4. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.

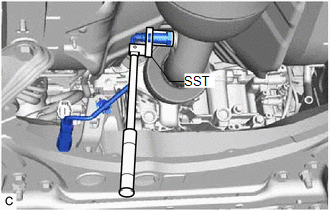

      GTY492678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00011
      NOTE:

      If the heated oxygen sensor has been struck or dropped, replace it.
