Removal [06/2015 - ]: Procedure

  1. REMOVE NO. 2 CYLINDER HEAD COVER

    Refer to PROCEDURE - Step 15

  2. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    See step  3

  3. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 55

  4. REMOVE AIR FUEL RATIO SENSOR
    1. Disengage the wire harness clamp.

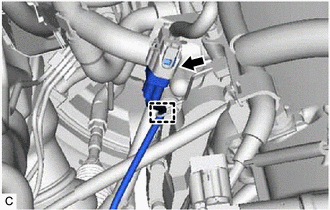

      GTY487635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the air fuel ratio sensor connector.
    3. Using SST, remove the air fuel ratio sensor from the exhaust manifold.

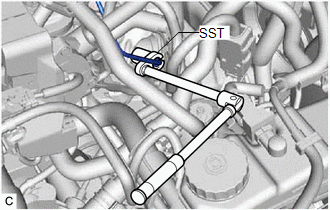

      GTY484509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00011
      NOTE:

      If the air fuel ratio sensor has been struck or dropped, replace it.
