Inspection [06/2015 - ]: Procedure

INSPECT FUEL INJECTOR ASSEMBLY

Check the resistance.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

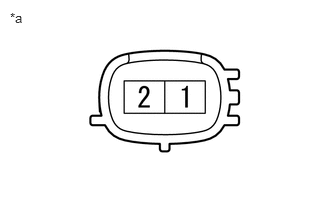

*a	Component without harness connected (Fuel Injector Assembly)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
1 - 2	20°C (68°F)	11.6 to 12.4 Ω

If the result is not as specified, replace the fuel injector assembly.

Check the operation.

WARNING:

Perform the inspection in a well-ventilated area.

Do not perform the inspection near an open flame.

Connect SST (fuel tube connector) to SST (hose) with SST (hose band), and then connect them to the fuel pipe (vehicle side).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	SST (Hose)
*b	SST (Hose Band)
*c	SST (Fuel Tube Connector)
*d	Fuel Pipe (Vehicle Side)

SST: 09268-31014
1. 09268-41500
2. 09268-41700
3. 95336-08070

NOTE:

Make sure the SST (fuel tube connector) O-rings are not damaged and are free of foreign matter as they are used to seal the connections between SST (fuel tube connector) and the fuel pipe (vehicle side).

Apply a light coat of gasoline to a new O-ring, and then install the O-ring to the fuel injector assembly.

Connect SST (adapter) and SST (hose) to the fuel injector assembly, and hold the fuel injector assembly and union with SST (clamp).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	O-ring
*a	SST (Hose)
*b	SST (Hose Band)
*c	SST (Adapter)
*d	SST (Clamp)
*e	Vinyl Tube

SST: 09268-31014
1. 09268-41110
2. 09268-41300
3. 09268-41700
4. 95336-08070

Install a vinyl tube to the fuel injector assembly.
WARNING:
Install a suitable vinyl tube to the fuel injector assembly to prevent fuel from spraying.

Tie SST (clamp) and SST (adapter) together with SST (tie band) as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	SST (Tie Band)
*b	SST (Adapter)
*c	SST (Clamp)
*d	Lock

SST: 09268-31014
1. 09268-41800

NOTE:

As SST (tie band) does not completely prevent SST (clamp) from becoming loose, do not subject the parts to any impacts while using them.
Before using SST (tie band), make sure that there is no wear, damage or cracks. If there are any abnormalities, replace SST (tie band).

HINT:

When removing SST (tie band), disengage the lock.

Check that SST (clamp) and SST (adapter) cannot be easily separated.
Set the fuel injector assembly in a graduated cylinder.
Operate the fuel pump.
Refer to PROCEDURE - Step 1

Connect SST (EFI inspection wire H) to the fuel injector assembly and battery for 15 seconds, and measure the injection volume with the graduated cylinder. Test each fuel injector assembly 2 or 3 times.

*a	SST (EFI Inspection Wire H)
*b	Connect

SST: 09842-30080

Standard Injection Volume

Battery Connection	Condition	Specified Condition
Positive (+) battery terminal - Negative (-) battery terminal	Per 15 seconds	60 to 73 cc (3.7 to 4.5 cu. in.)

Difference between Each Fuel Injector Assembly

13 cc (0.8 cu. in.) or less

NOTE:

Make sure that SST (EFI inspection wire H) is securely connected.
Always switch the voltage on and off at the battery side, not the fuel injector assembly side.

If the result is not as specified, replace the fuel injector assembly.

Check for leaks.
1. Disconnect SST (EFI inspection wire H) from the battery and check for fuel leaks from the fuel injector assembly.
  Standard Fuel Drop

  1 drop or less per 25 minutes

  If the result is not as specified, replace the fuel injector assembly.
2. Check for fuel leaks.
  Refer to PROCEDURE - Step 1
