Inspection [06/2015 - ]: Procedure

  1. INSPECT TRANSMISSION REVOLUTION SENSOR (NIN)
    1. Measure the resistance according to the value(s) in the table below.

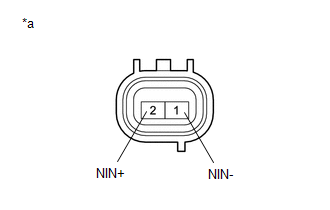

      GTY490772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Transmission Revolution Sensor (NIN))

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 (NIN-) - 2 (NIN+) 20°C (68°F) 560 to 680 Ω

      If the result is not as specified, replace the transmission revolution sensor (NIN).

  2. INSPECT TRANSMISSION REVOLUTION SENSOR (NOUT)

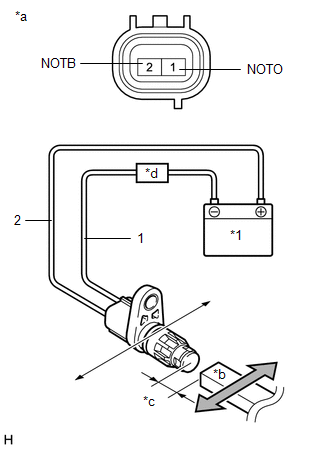

    1. Connect the battery to the transmission revolution sensor (NOUT) as shown in the illustration.
      GTY483298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Battery
      *a Component without harness connected
      (Transmission Revolution Sensor (NOUT))
      *b Magnet
      *c 5 mm (0.197 in.) gap or closer
      *d Ammeter
    2. Wave a magnetic object left and right in front of the tip of the transmission revolution sensor (NOUT) (5 mm (0.197 in.) gap or closer) to change the high/low signals while measuring the current.
      NOTE:

      Be sure to wave a magnetic object during the inspection. The current will not change without waving the magnetic object as indicated by the arrow in the illustration.

    3. Measure the current according to the value(s) in the table below.

      Standard Current

      Tester Connection Condition Specified Condition
      1 (NOTO) - 2 (NOTB) Low Signal 4 to 8 mA
      High Signal 12 to 16 mA

      If the result is not as specified, replace the transmission revolution sensor (NOUT).
