Fuel Pressure Pulsation Damper: Installation: Installation

INSTALL FUEL PRESSURE PULSATION DAMPER ASSEMBLY
1. Apply a light coat on gasoline or spindle oil to a new O-ring on the fuel pressure pulsation damper.

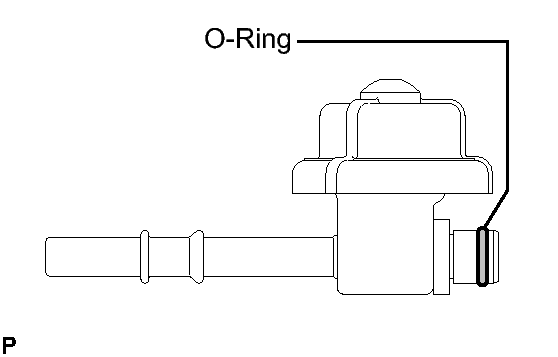

  Fig 1: View Of Fuel Pressure Pulsation Damper O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the fuel pressure pulsation damper with the 2 bolts.

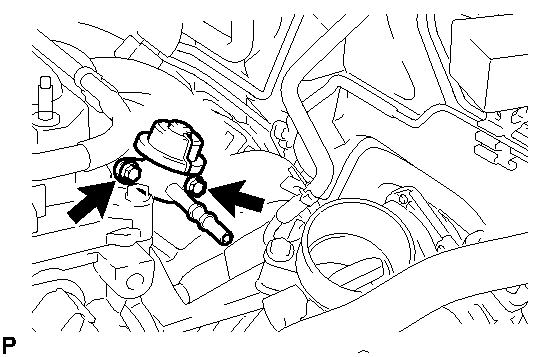

  Fig 2: View Of Fuel Pressure Pulsation Damper Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

  NOTE:
  Make sure that the O-ring is not cracked or jammed when installing.
CONNECT FUEL MAIN TUBE See step 4.
INSTALL AIR CLEANER CAP SUB-ASSEMBLY WITH NO. 1 AIR CLEANER HOSE . Refer to INSTALLATION - Step 2 .
INSPECT FOR FUEL LEAK . Refer to ON-VEHICLE INSPECTION - Step 1 .
INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 5 .
