Fuel Tank: Removal: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
REMOVE FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE
Refer to REMOVAL
DRAIN FUEL
REMOVE CENTER EXHAUST PIPE ASSEMBLY
Refer to REMOVAL
REMOVE NO. 1 FUEL TANK PROTECTOR
1. Remove the 3 bolts and fuel tank protector.

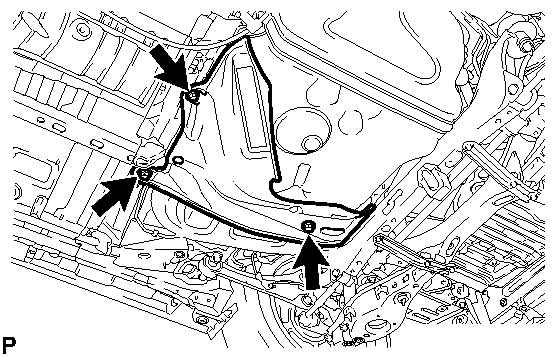

  Fig 1: Identifying No. 1 Fuel Tank Protector Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY
1. Disconnect the fuel tank main tube. Refer to PRECAUTION .

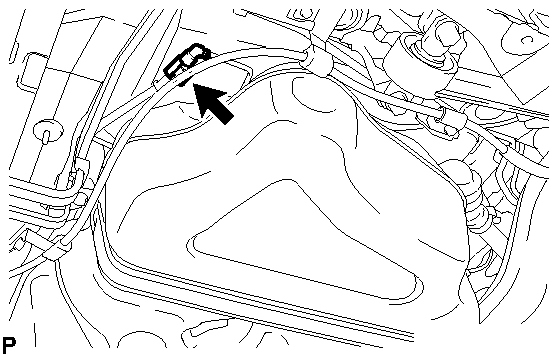

  Fig 2: Identifying Fuel Tank Main Tube Connection
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE FUEL TANK ASSEMBLY

Remove the 2 bolts and disconnect the No. 2 parking brake cable assembly and No. 3 parking brake cable assembly.

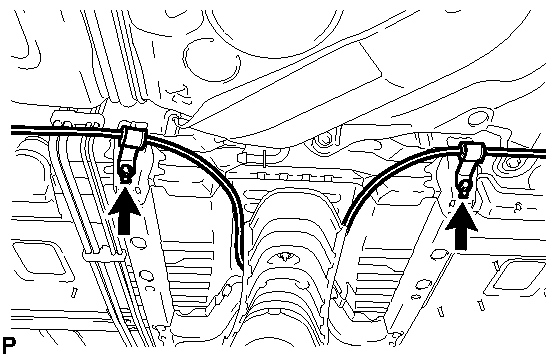

Fig 3: Identifying No. 2 Parking Brake Cable Assembly And No. 3 Parking Brake Cable Assembly Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the vent line hose.

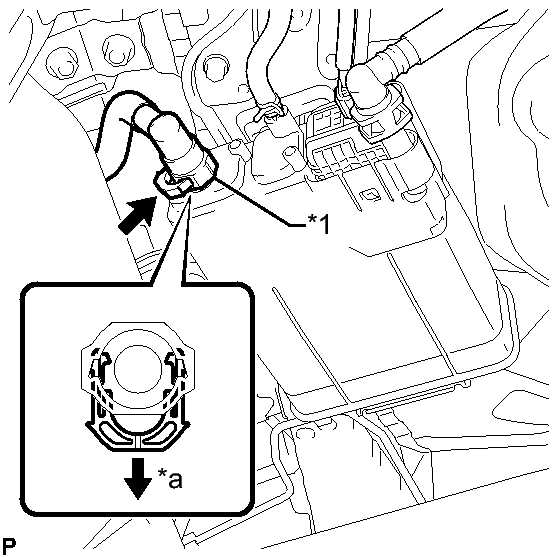

Fig 4: Disconnecting Vent Line Hose

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Vent Line Hose
*a	Pull Out

Loosen the hose clamp bolt, and then disconnect the fuel tank to filler pipe hose.

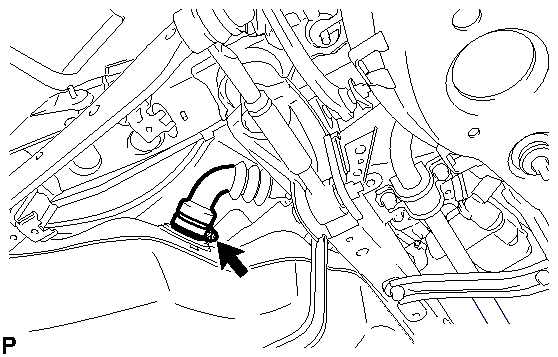

Fig 5: Identifying Filler Pipe Hose Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Hold the fuel tank using an engine lifter.
Remove the 4 bolts and 2 fuel tank bands.

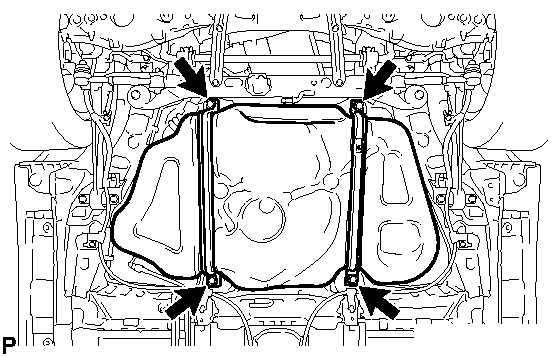

Fig 6: Location Of Fuel Tank Bolts And Bands
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Operate the engine lifter, and then remove the fuel tank.

REMOVE FUEL TANK MAIN TUBE SUB-ASSEMBLY

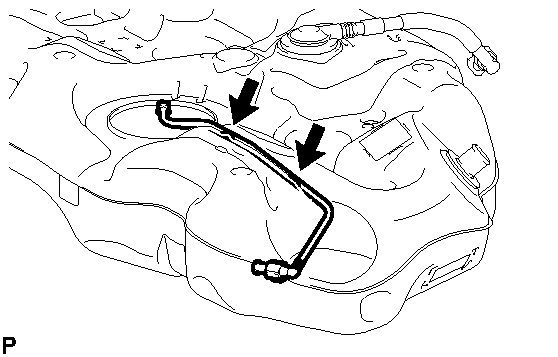

Fig 7: Identifying Fuel Tank Main Tube Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
