Parts Location: Illustration

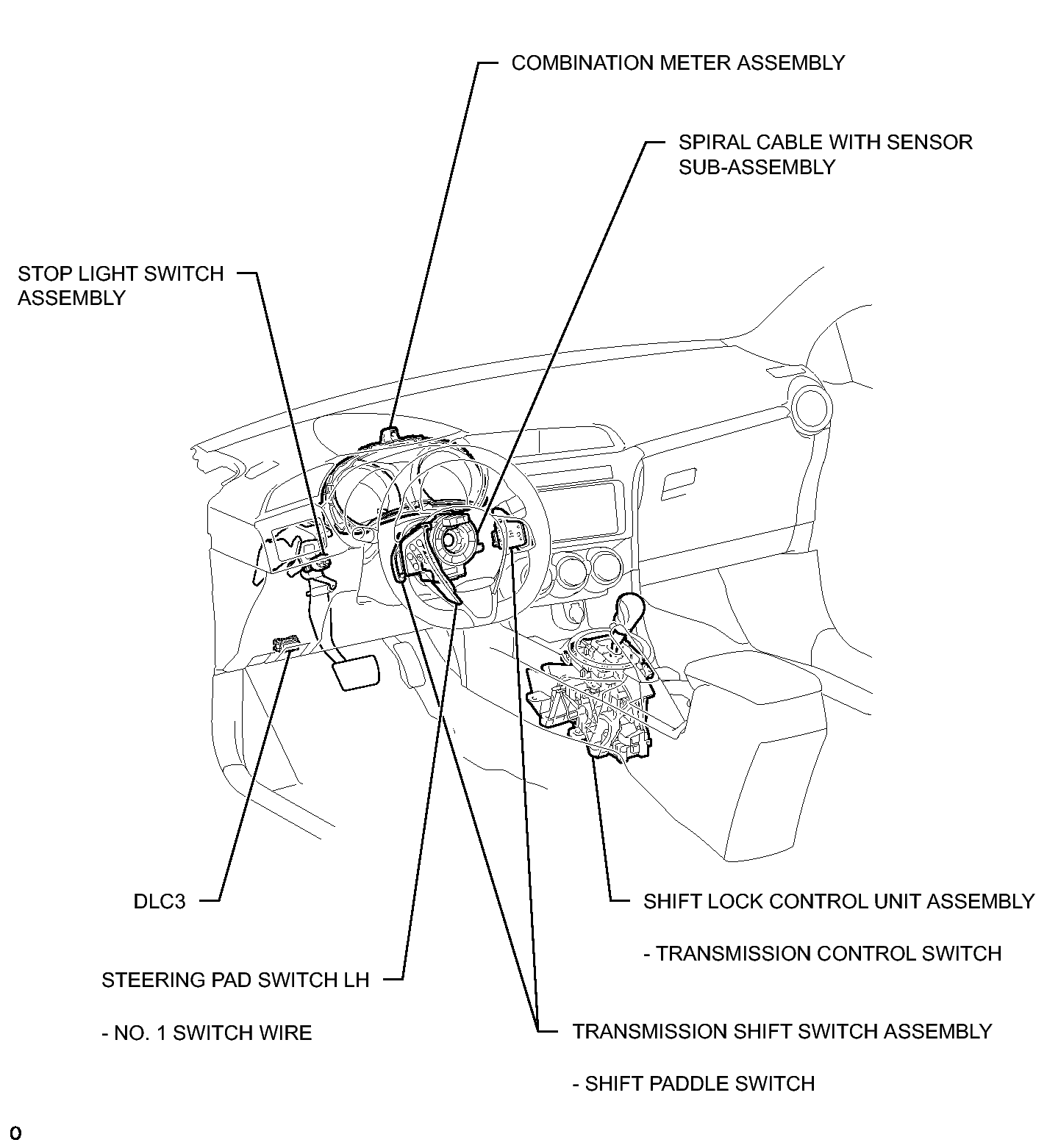

Fig 1: Automatic Transaxle System Component Locations (1 Of 3)
GTY311923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

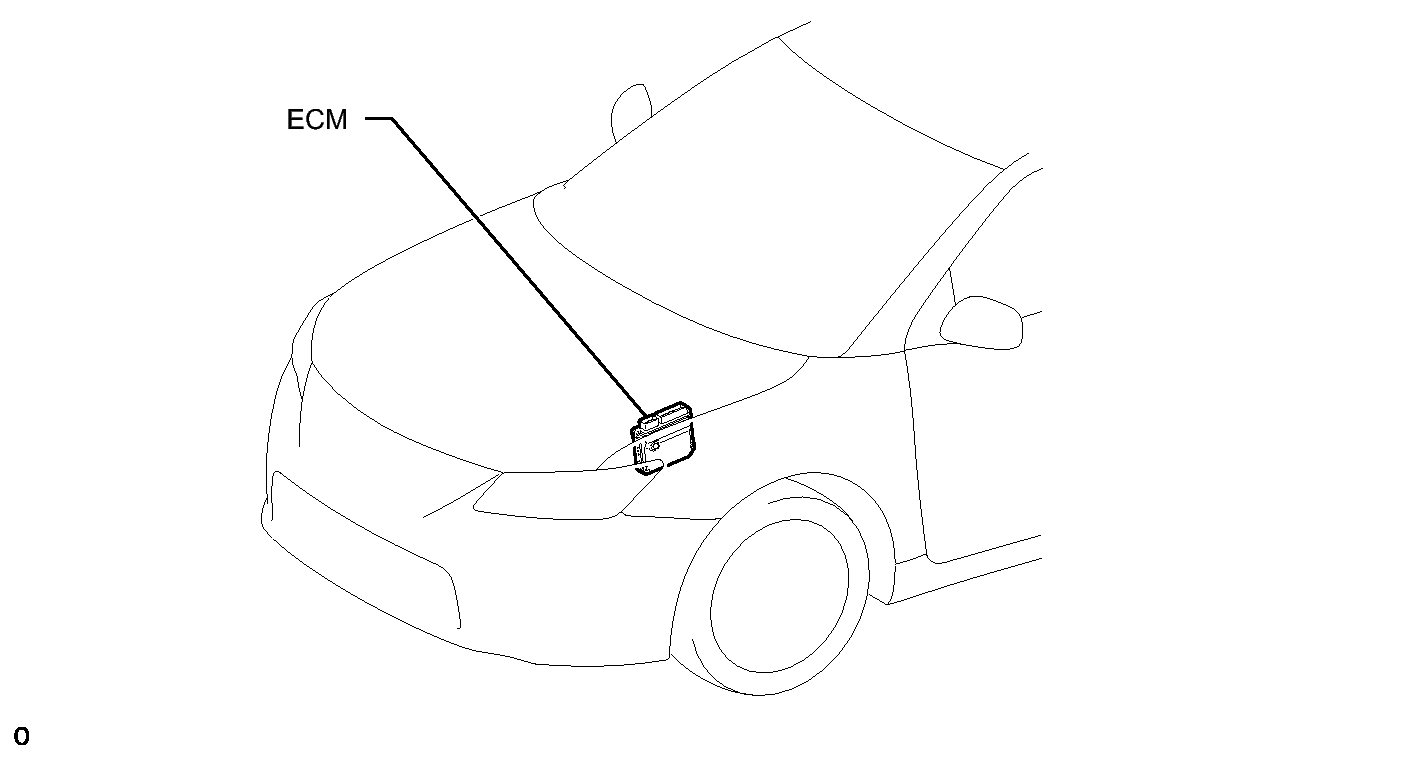

Fig 1: Automatic Transaxle System Component Locations (2 Of 3)
GTY312522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

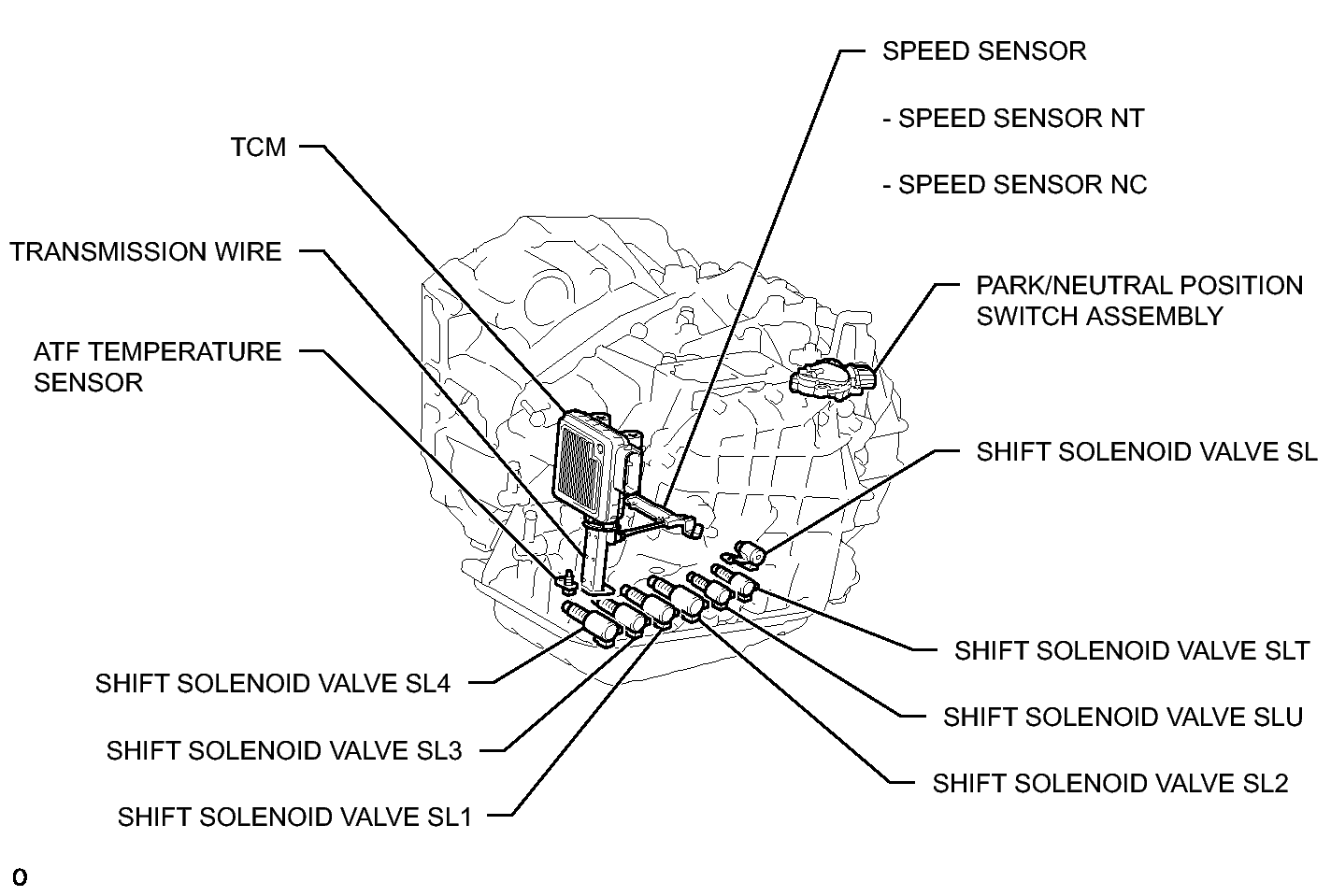

Fig 1: Automatic Transaxle System Component Locations (3 Of 3)
GTY313110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
