ECU Power Source Circuit: Procedure

1. Disconnect the TCM connector.

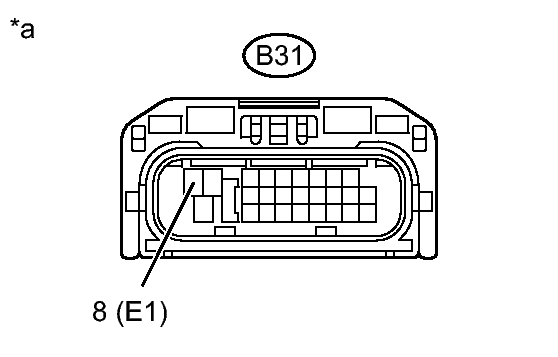

   Fig 1: Checking TCM (TCM - Body Ground)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   B31-8 (E1) - Body ground	Always	Below 1 Ω

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to TCM)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Remove the integration relay from the engine room relay block. Refer to ON-VEHICLE INSPECTION .
2. Disconnect the TCM connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   1B-4 - B31-18 (+B)	Always	Below 1 Ω
   1B-4 or B31-18 (+B) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   3
