Oil Pressure Switch: Components: Illustration

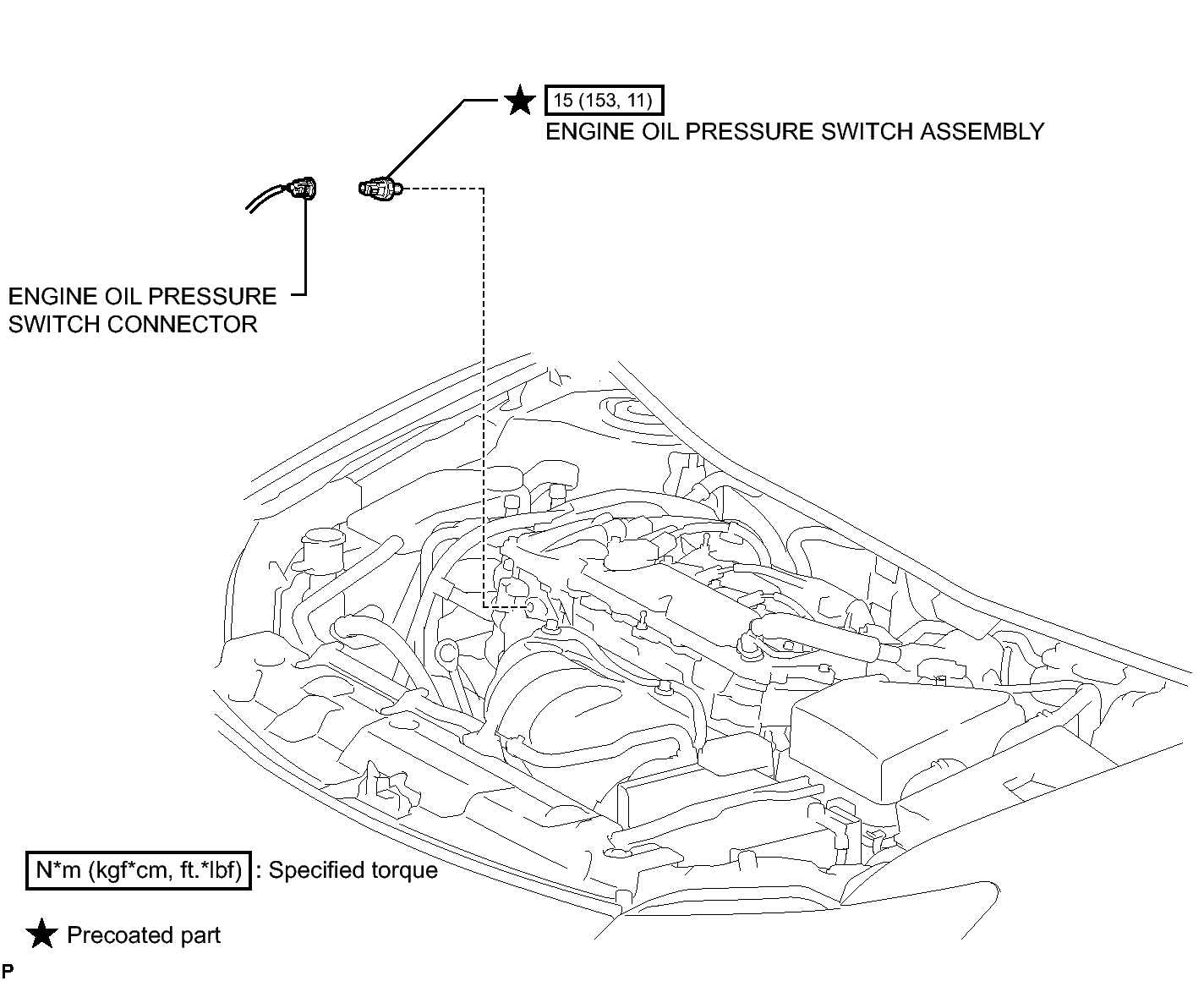

Fig 1: Oil Pressure Switch With Torque Specifications

GTY311542

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
