Emission Control System (Service Information): Canister: Installation: Installation
- INSTALL CANISTER
- Attach the claw and install the canister with the 3 bolts and a new clip.
Torque: 19 N*m (196 kgf*cm, 14 ft.*lbf)

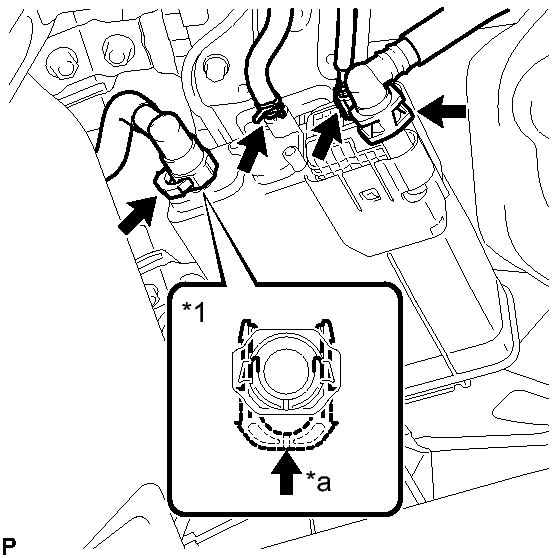

- Connect the vent line hose.TEXT IN ILLUSTRATION
*1 Vent Line Hose *a Push - Push the hose into the port and push the retainer to lock it.NOTE:
- Check for damage or foreign objects on the connected part.
- After connecting the hose, check that the vent hose and valve are securely connected by pulling on them.
- Push the hose into the port and push the retainer to lock it.
- Connect the air inlet hose.NOTE:
- Check for damage or foreign objects on the connected part.
- After connecting the hose, check that the vent hose and valve are securely connected by pulling on them.
- Connect the purge line hose.
- Connect the connector.
- Attach the claw and install the canister with the 3 bolts and a new clip.
- INSTALL MAIN MUFFLER HEAT INSULATOR
- Install the main muffler heat insulator with the 4 nuts.
Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
- Install the main muffler heat insulator with the 4 nuts.
