Shift Lever Assembly: Components: Illustration

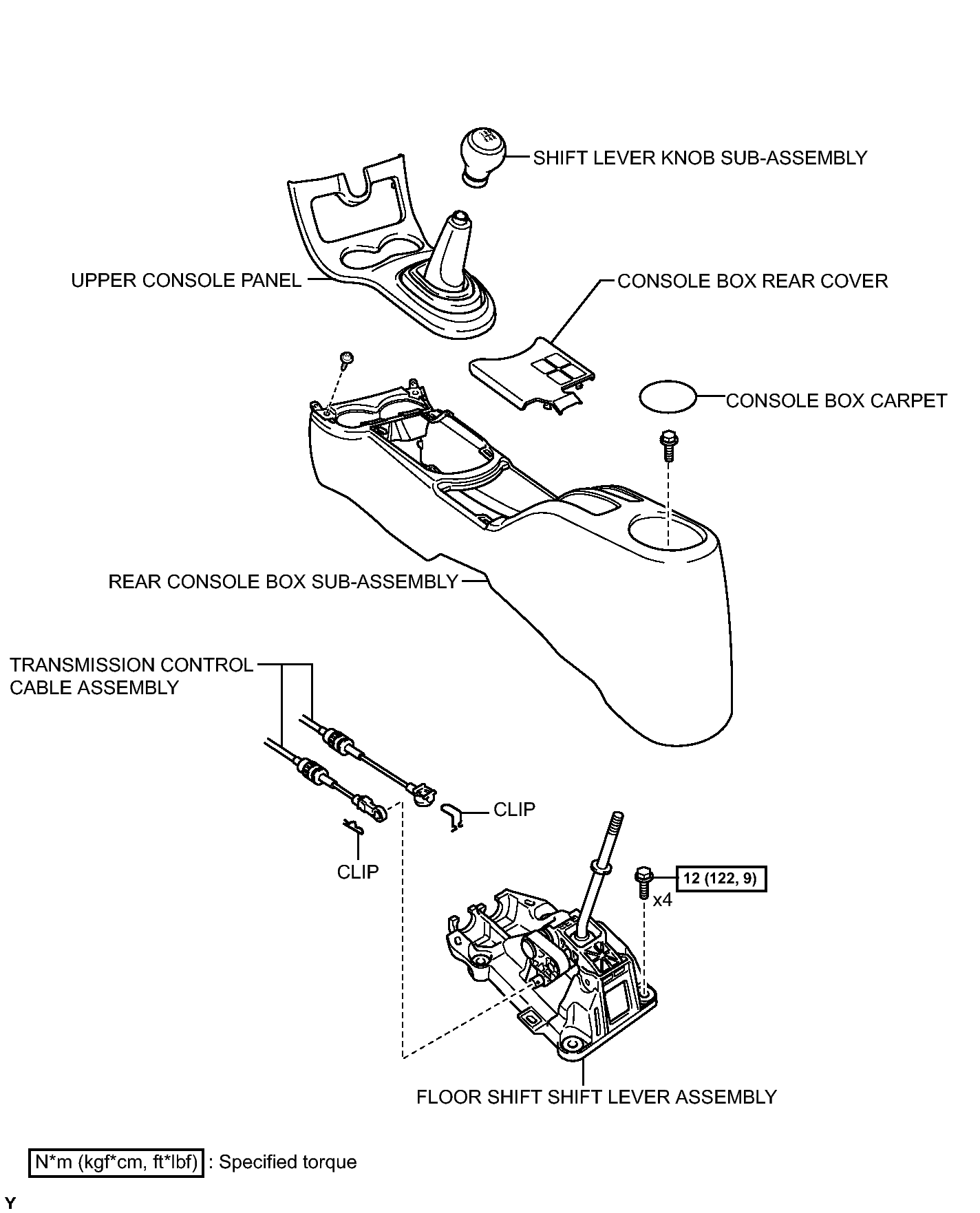

Fig 1: Identifying Shift Lever Assembly Replacement Components With Torque Specification

GTY158057

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
