Manual Transaxle Assembly: Components: Illustration

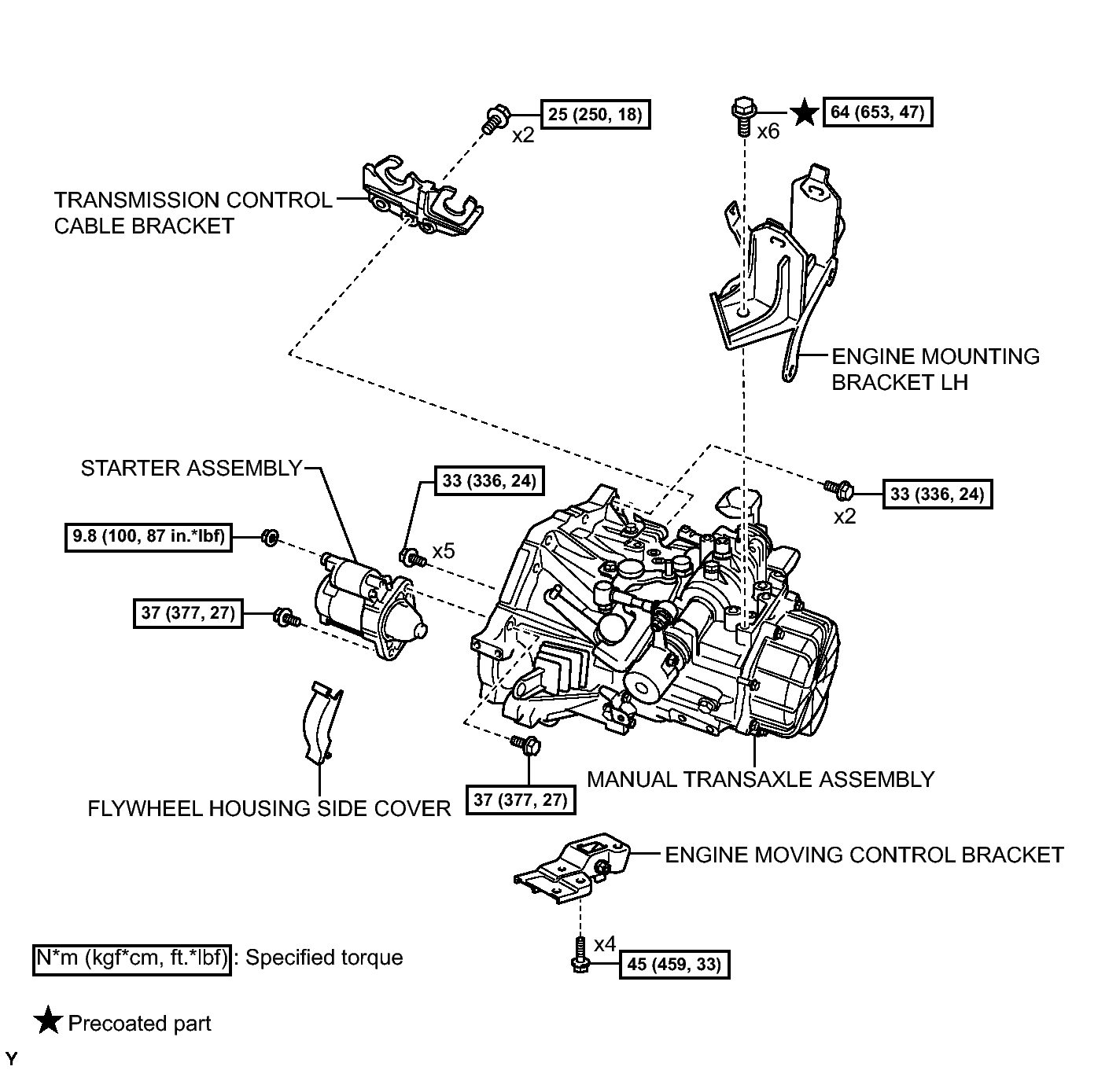

Fig 1: Identifying Manual Transaxle Assembly Replacement Components With Torque Specifications

GTY310195

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
