Input Shaft: Components: Illustration

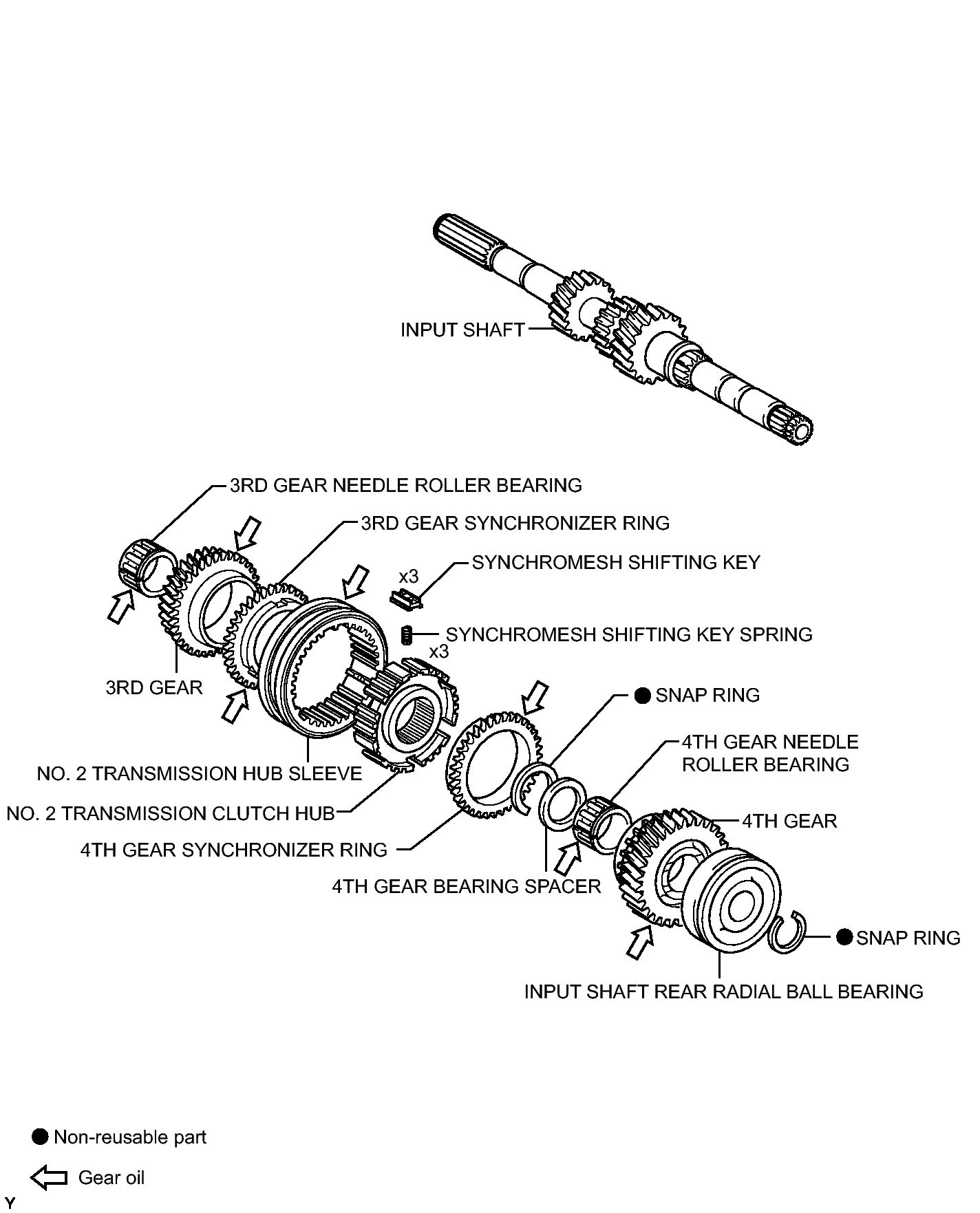

Fig 1: Identifying Input Shaft Replacement Components

GTY162690

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
