Front Passenger Side Power Window Switch: Removal: Removal

  1. REMOVE FRONT ARMREST BASE UPPER PANEL RH  . Refer to DISASSEMBLY - Step 2
  2. REMOVE FRONT PASSENGER SIDE POWER WINDOW SWITCH

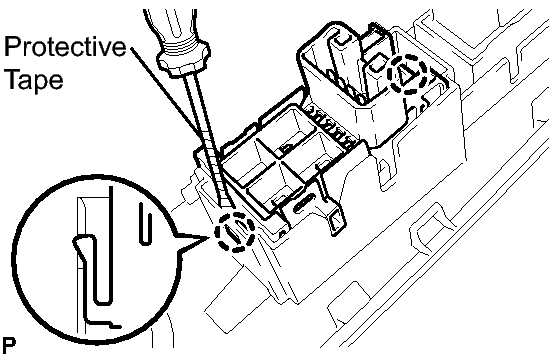

    Fig 1: Removing Power Window Switch
    GTY164020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the power window switch.
