Oil Pressure Switch: Components: Illustration

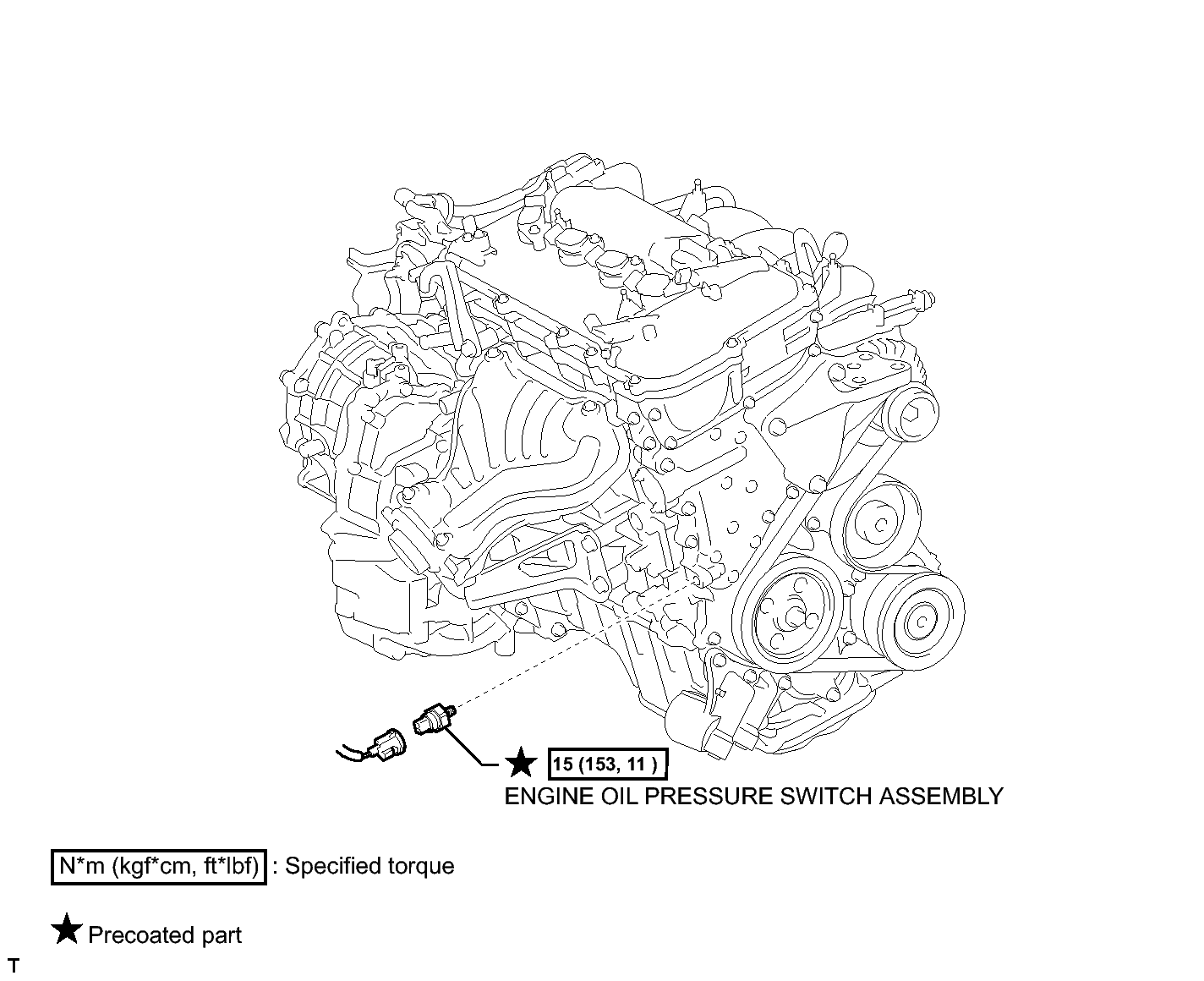

Fig 1: Identifying Oil Pressure Switch Assembly Replacement Components With Torque Specification

GTY166909

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
