Engine Switch: Inspection: Inspection

INSPECT ENGINE SWITCH

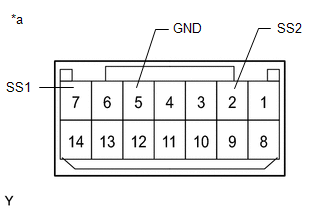

Fig 1: Identifying Engine Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in the table below.

Standard Resistance

TEXT IN ILLUSTRATION

*a	Component without harness connected (Engine Switch)

If the result is not as specified, replace the engine switch assembly.

Apply battery voltage between the terminals of the switch and check the illumination of the switch.

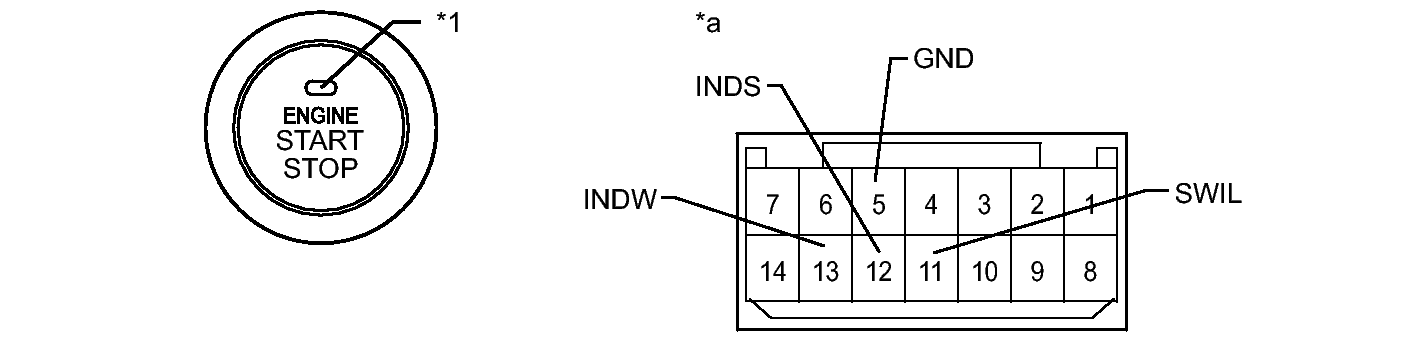

Fig 2: Checking Switch Illumination

TEXT IN ILLUSTRATION

*1	Indicator Light	-	-
*a	Component without harness connected (Engine Switch)	-	-

Measurement Condition	Specified Condition
Battery positive (+) → Terminal 11 (SWIL) Battery negative (-) → Terminal 5 (GND)	Illuminates (illumination of lettering)
Battery positive (+) → Terminal 12 (INDS) Battery negative (-) → Terminal 5 (GND)	Illuminates (green)
Battery positive (+) → Terminal 13 (INDW) Battery negative (-) → Terminal 5 (GND)	Illuminates (amber)

NOTE:

If the positive (+) lead and the negative (-) lead are incorrectly connected, the engine switch indicator will not illuminate.
If the voltage is too low, the indicator will not illuminate.

If the result is not as specified, replace the engine switch assembly.
