Parts Location: Illustration

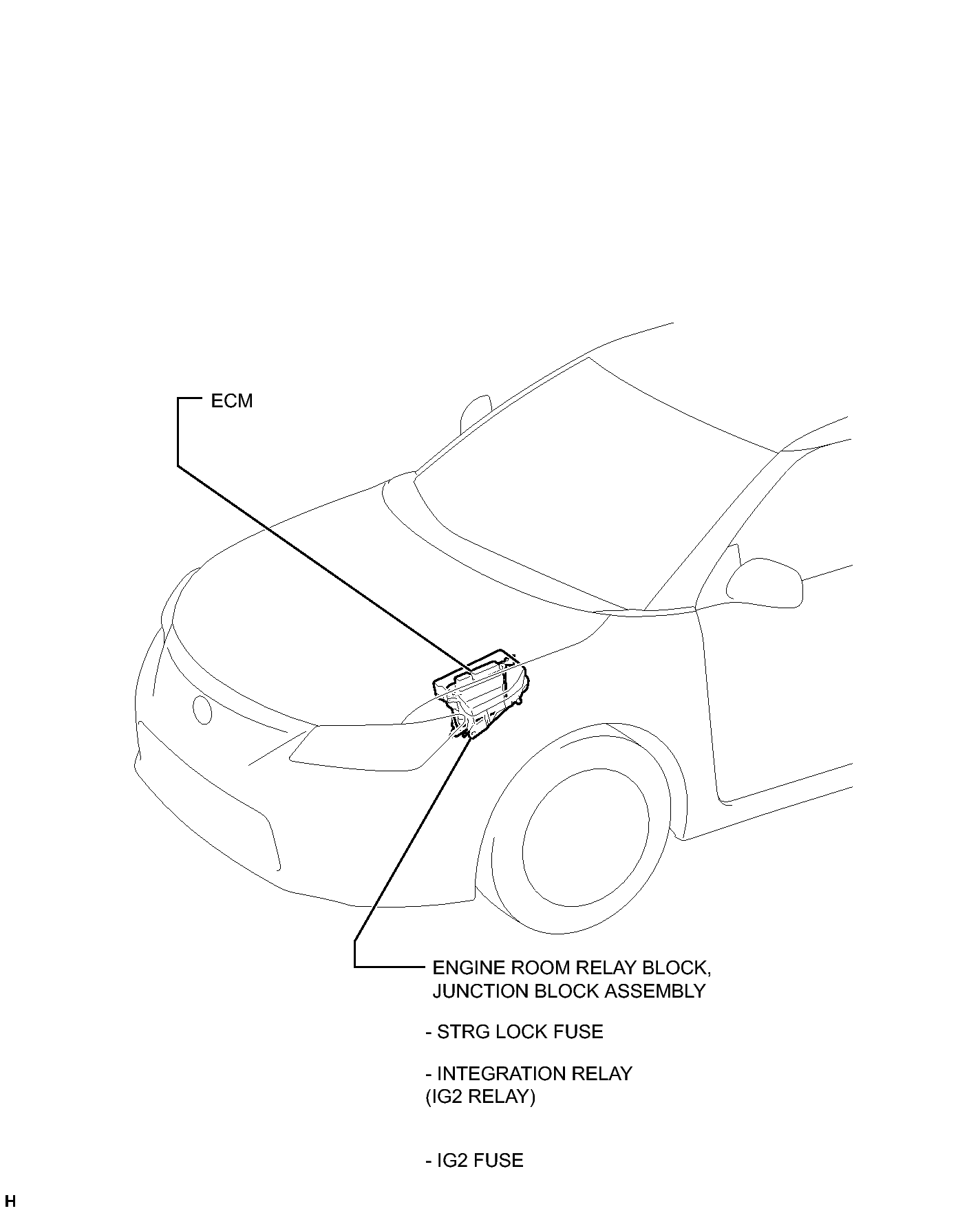

Fig 1: Identifying Steering Lock System Components Location (1 of 2)
GTY310367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

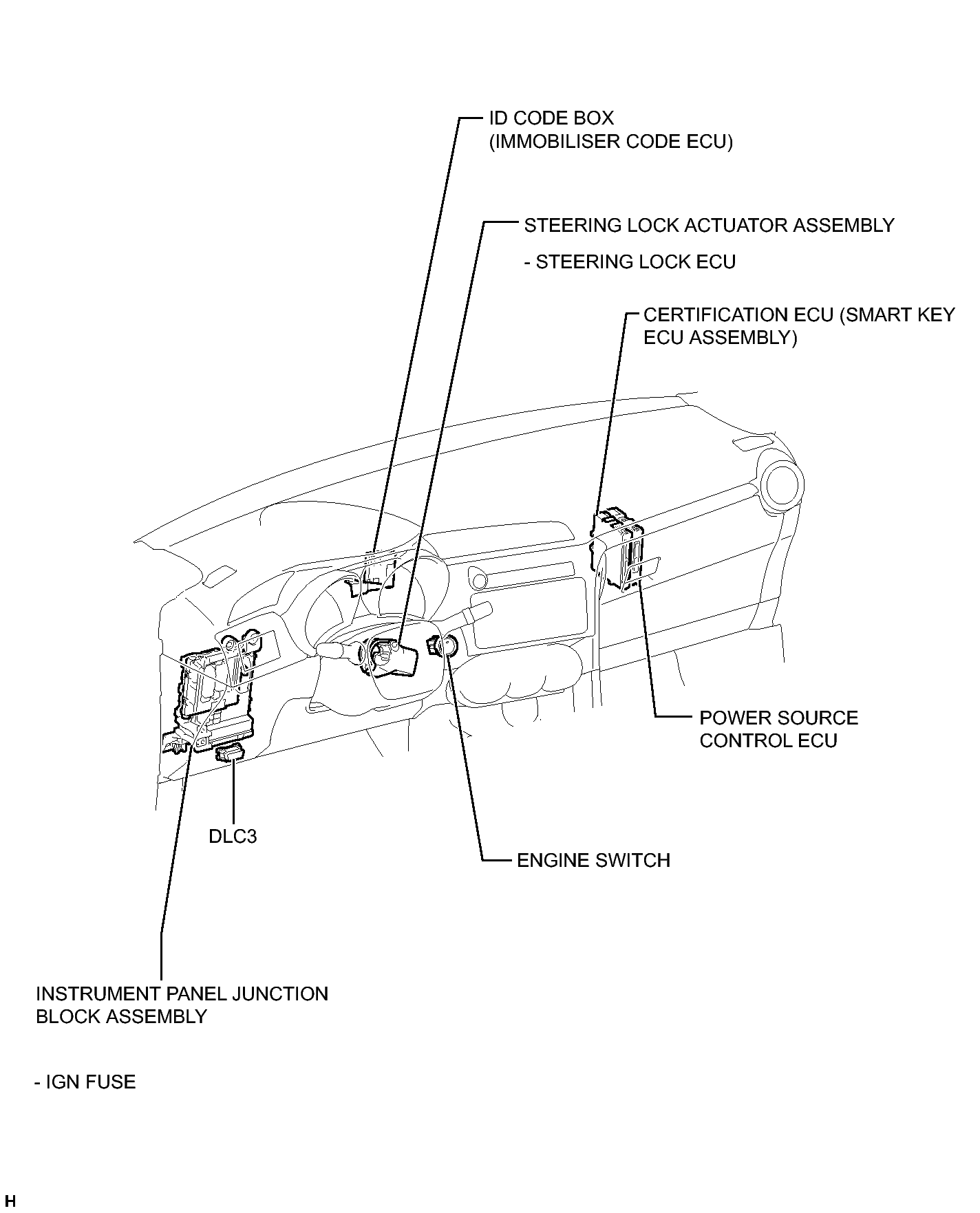

Fig 1: Identifying Steering Lock System Components Location (2 of 2)
GTY311611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
