Camshaft Position Sensor: Removal: Removal

  1. REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side)

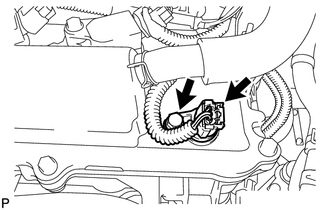

    Fig 1: View Of Camshaft Position Sensor (For Exhaust Side)
    GTY296379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.
  2. REMOVE CAMSHAFT POSITION SENSOR (for Intake Side)

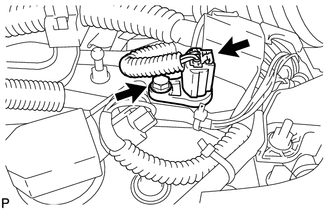

    Fig 2: View Of Camshaft Position Sensor (For Intake Side)
    GTY312857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.
