Manual Transaxle Oil: Replacement: Replacement

  1. DRAIN MANUAL TRANSAXLE OIL
    1. Remove the filler plug and gasket.

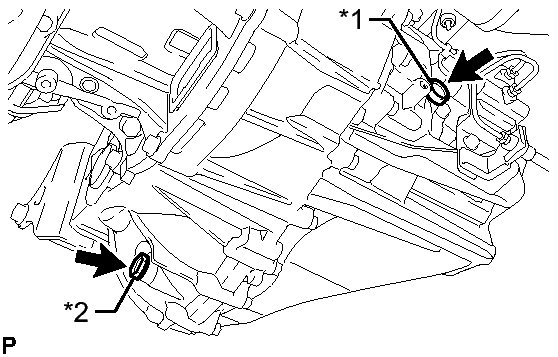

      Fig 1: Locating Filler Plug & Drain Plug
      GTY313203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Filler Plug
      *2 Drain Plug
    2. Remove the drain plug and gasket to drain the manual transaxle oil.
    3. Install a new gasket and the drain plug.

      Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

  2. ADD MANUAL TRANSAXLE OIL
    1. Add manual transaxle oil until the oil level is within 5 mm (0.196 in.) from the bottom of the filler plug opening.

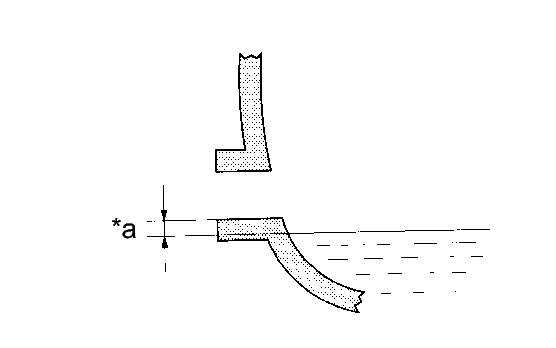

      Fig 2: Adding Manual Transaxle Oil
      GTY310430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a 0 to 5 mm (0 to 0.196 in.)
    2. Install a new gasket and the filler plug.

      Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

      NOTE:
      • When adding transaxle oil, make sure that the vehicle is level.
      • An excessively large or small amount of oil may cause problems.
      • After adding oil, drive the vehicle and recheck the oil level.
  3. INSPECT FOR OIL LEAK
