Taillight and Illumination: Notes

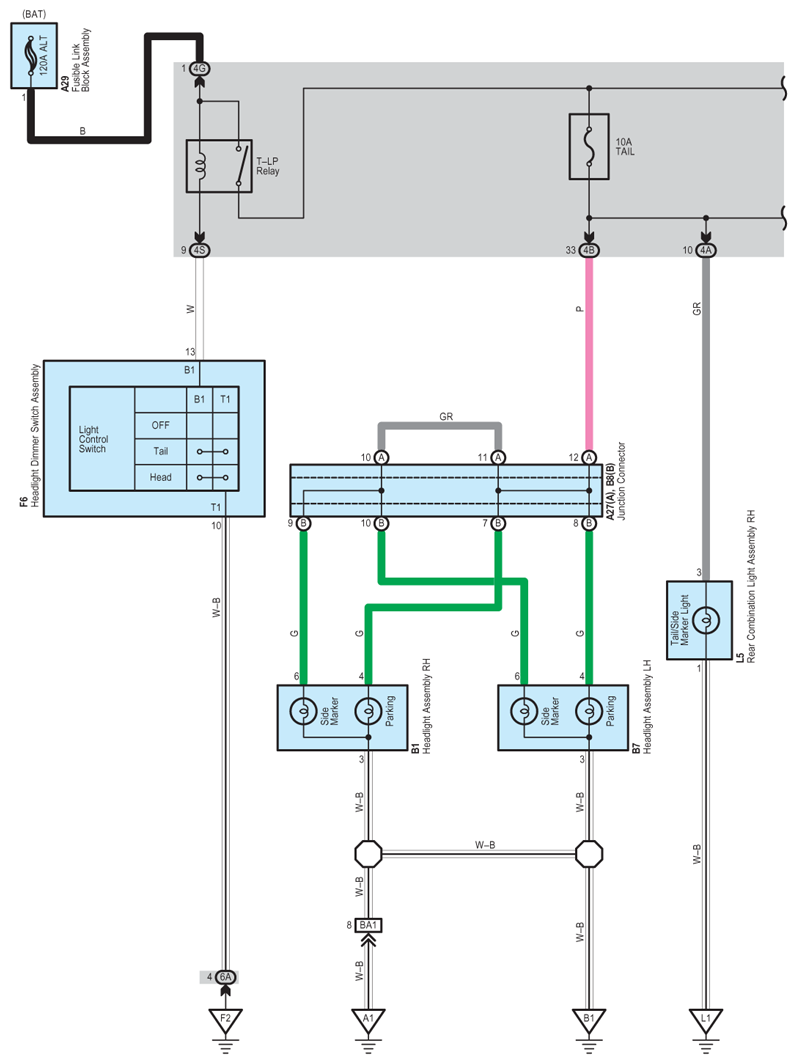

Fig 1: Taillight And Illumination - Circuit Diagram (1 Of 4)
G07571141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

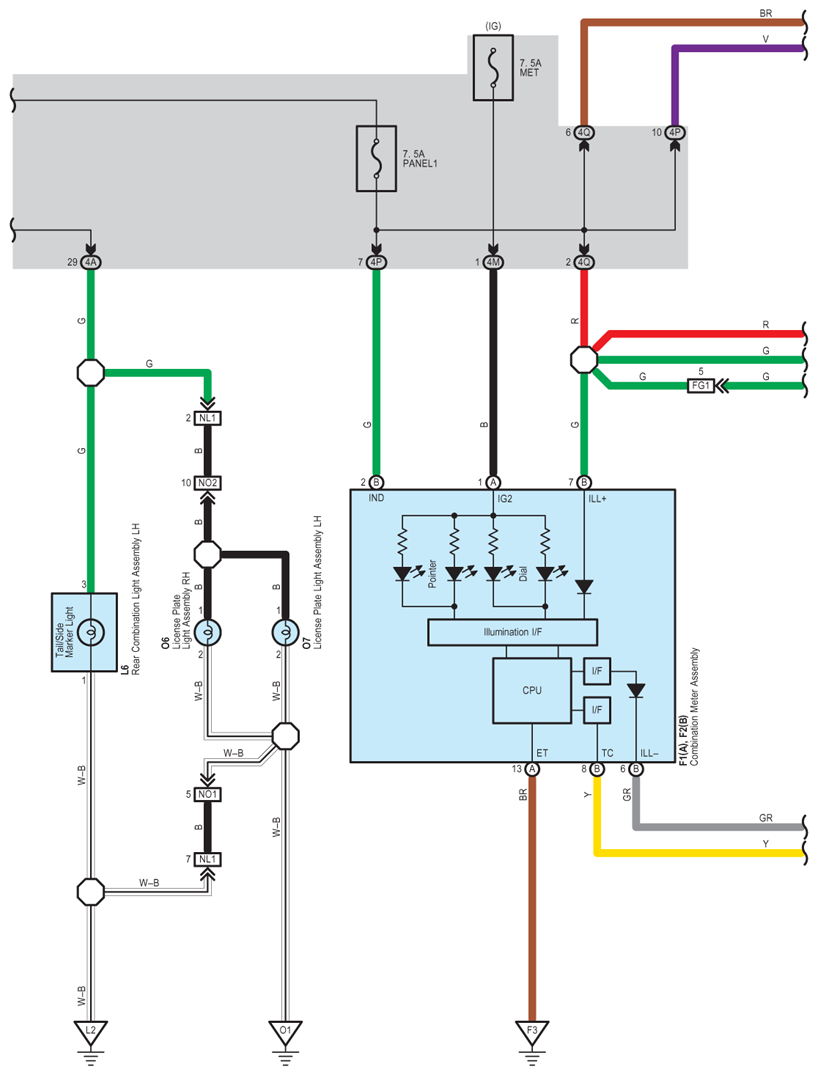

Fig 2: Taillight And Illumination - Circuit Diagram (2 Of 4)
G07571142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

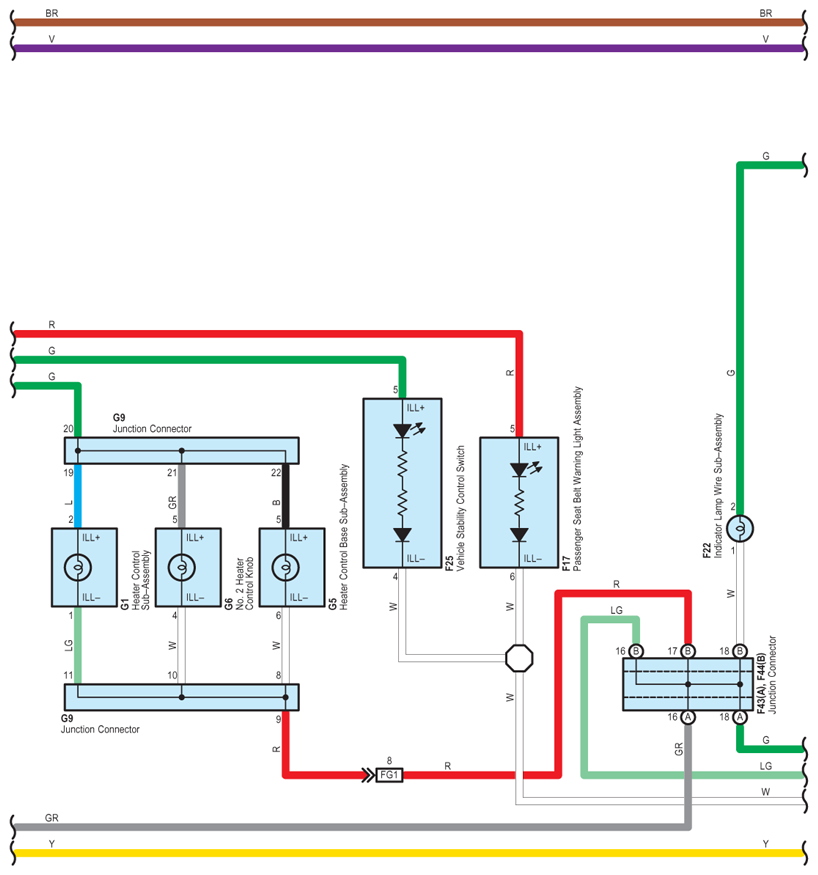

Fig 3: Taillight And Illumination - Circuit Diagram (3 Of 4)
G07571143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

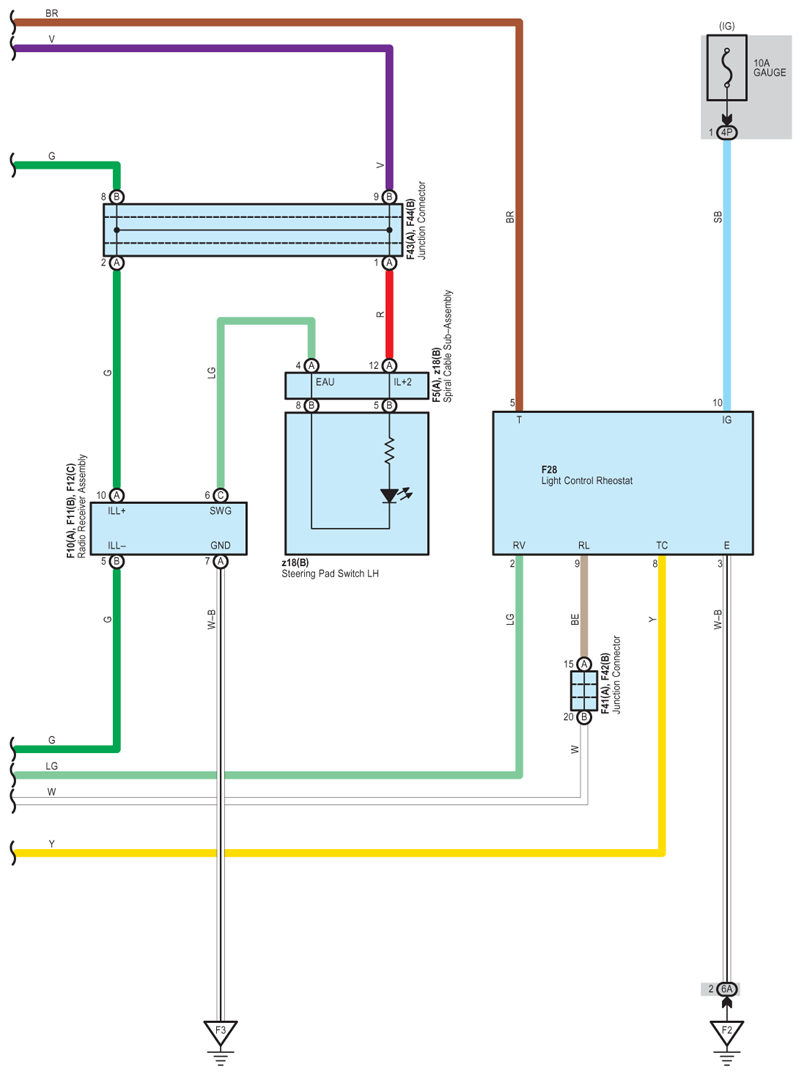

Fig 4: Taillight And Illumination - Circuit Diagram (4 Of 4)
G07571144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
