System Diagram

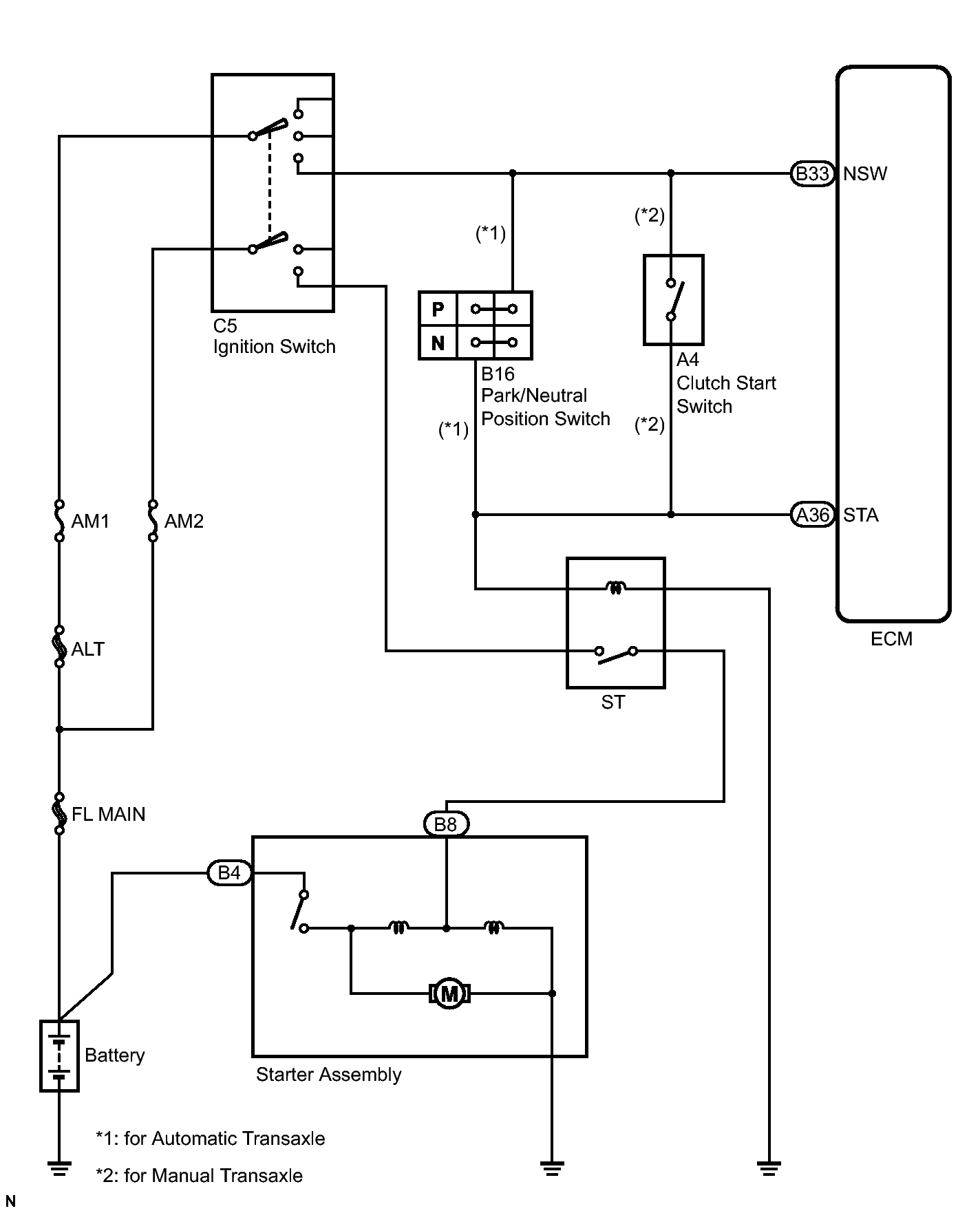

Fig 1: Starting System Diagram

GTY162377

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
