Fuel Pump: Reassembly: Reassembly

INSTALL FUEL PUMP

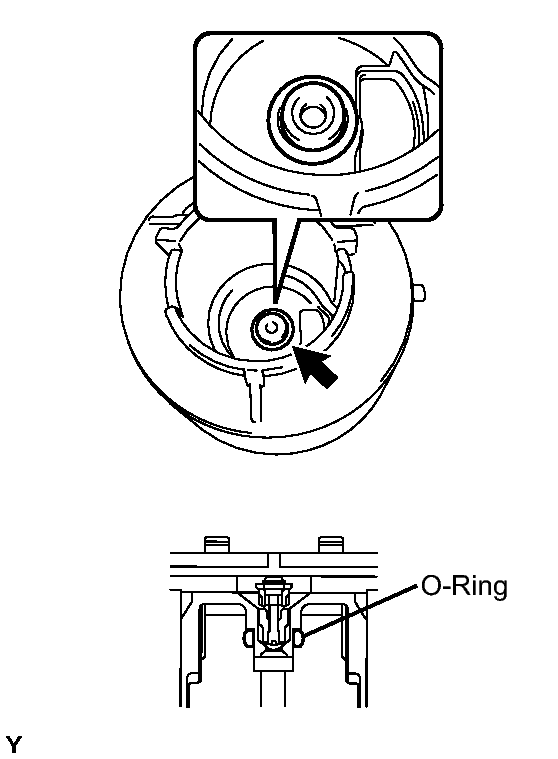

1. Apply gasoline to a new O-ring, and then install it onto the fuel filter.

  Fig 1: Identifying Fuel Filter O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not disassemble the fuel pump and the suction filter because they are non-reusable parts.
2. Connect the fuel pump harness.

  Fig 2: View Of Fuel Pump Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 5 claws of the fuel pump.

  Fig 3: View Of Claws Of Fuel Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Do not remove the suction filter.
  - Do not use either the fuel pump or the suction filter if the suction filter is removed from the fuel pump.
4. Engage the 4 claws on the fuel suction support and install the fuel filter and the fuel pump onto the fuel sub-tank.

  Fig 4: Identifying 4 Fuel Suction Support Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the fuel pump filter hose.

  Fig 5: View Of Fuel Pump Harness Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the fuel pump harness connector.
INSTALL FUEL SENDER GAUGE ASSEMBLY
1. Install the fuel sender gauge by sliding it downward.
2. Connect the connector of the fuel sender gauge and fuel pump.

  Fig 6: View Of Fuel Sender Gauge And Fuel Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

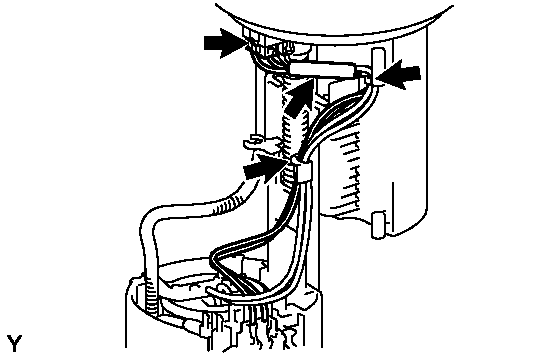

3. Connect the 2 harness clamps.
  NOTE:
  Do not damage the wire harness.
